Bridge digital sources to analog audio gear
Convert compatible optical or coaxial SPDIF output into RCA stereo or 3.5 mm analog audio when your speaker, amplifier or headphones lack the matching digital input.

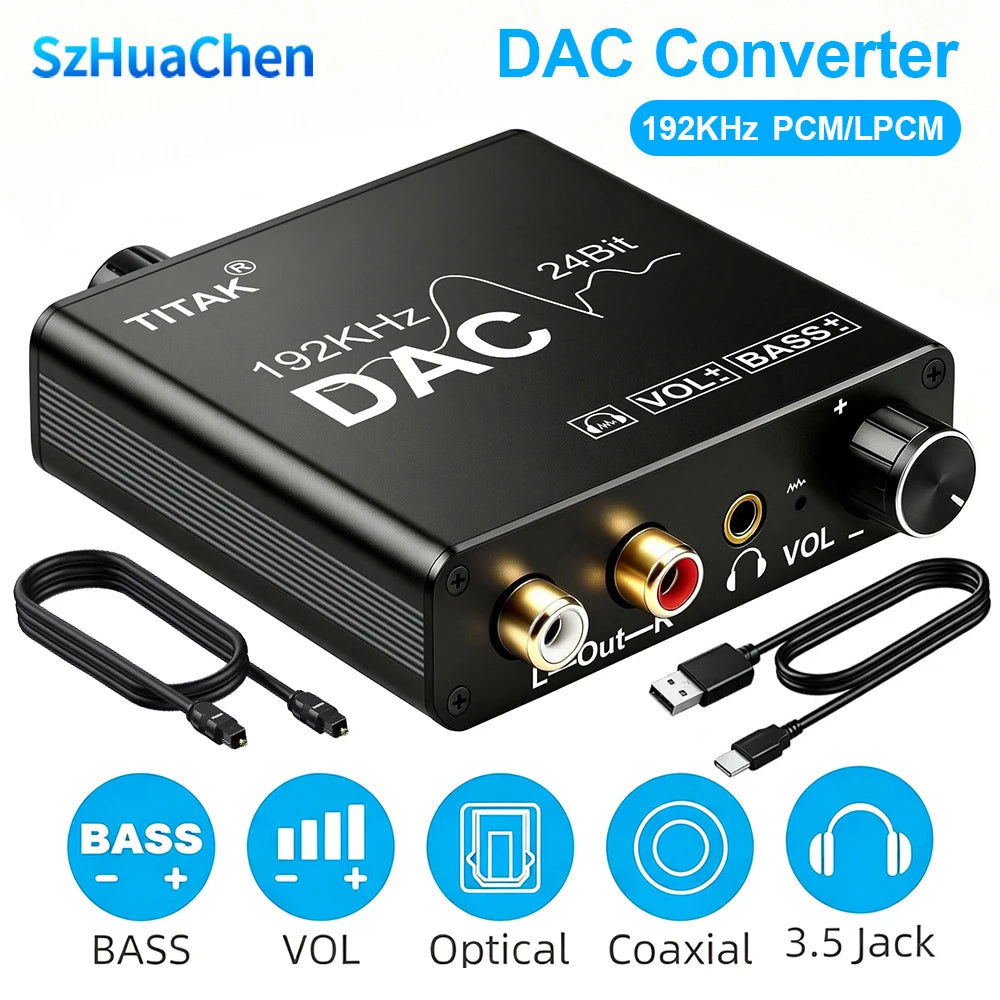

192kHz/24-Bit Optical & Coaxial DAC to RCA/3.5mm
$53.99
$96.99
Shipping and applicable taxes are shown at checkout.
Secure checkout powered by Shopify
Why it works
Keep using analog speakers, amplifiers or headphones with digital optical and coaxial audio sources through one compact converter.
A powered optical/coaxial SPDIF-to-analog DAC with RCA and 3.5 mm outputs, PCM support up to 192 kHz / 24-bit, plus physical volume and bass controls.
Key benefits
Why you will keep it within reach
Control headphone level directly
A built-in headphone output and physical volume knob give you local level adjustment without relying only on the source device.
Adjust bass without another processor
The dedicated bass knob lets you change the low-frequency component directly from the converter for a simpler listening setup.
One compact box covers several output paths
RCA output can feed an amplifier or powered speaker setup, while the 3.5 mm jack provides a direct path for compatible headphones.
Details that matter
Product details
Connect Digital Audio Sources to Analog Speakers or Headphones

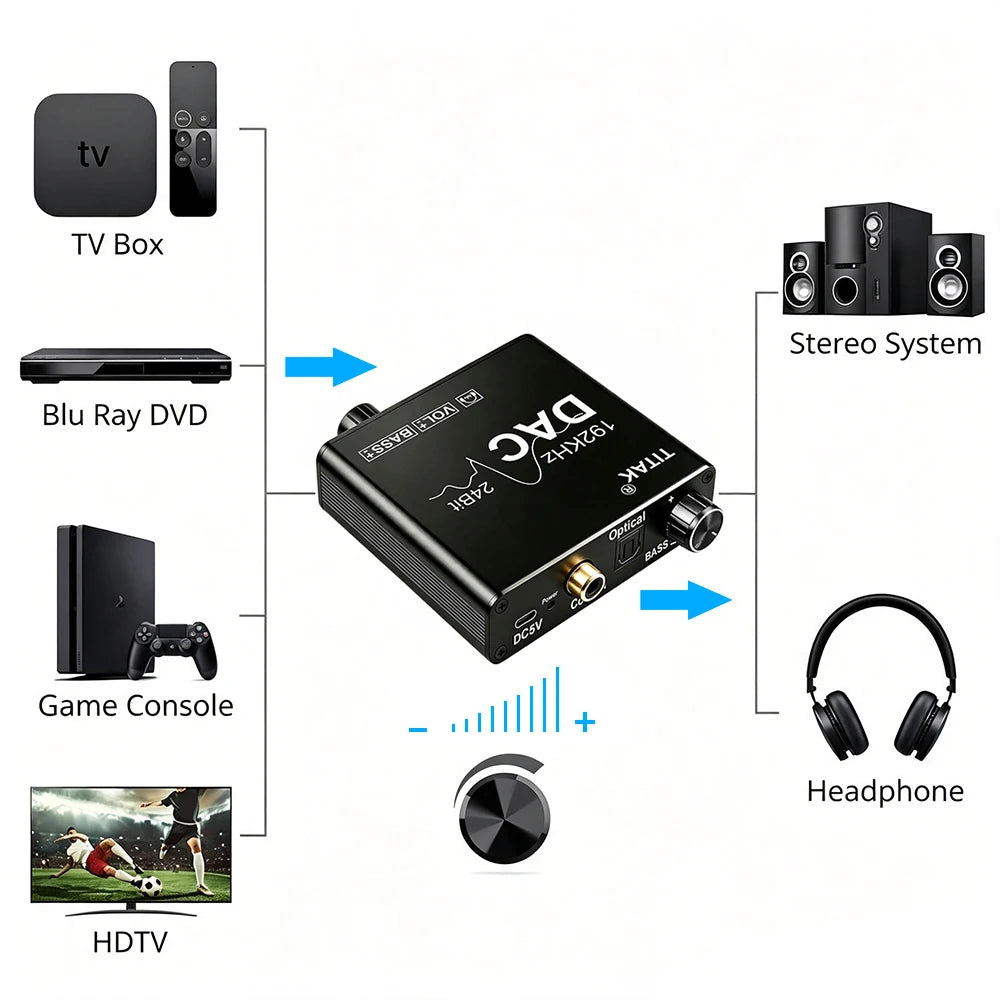

This DAC converts supported optical Toslink or coaxial SPDIF audio into analog stereo output through RCA or a 3.5 mm headphone jack. It is useful when a TV, game console, disc player or other digital source needs to feed older or analog audio equipment without a matching digital input.

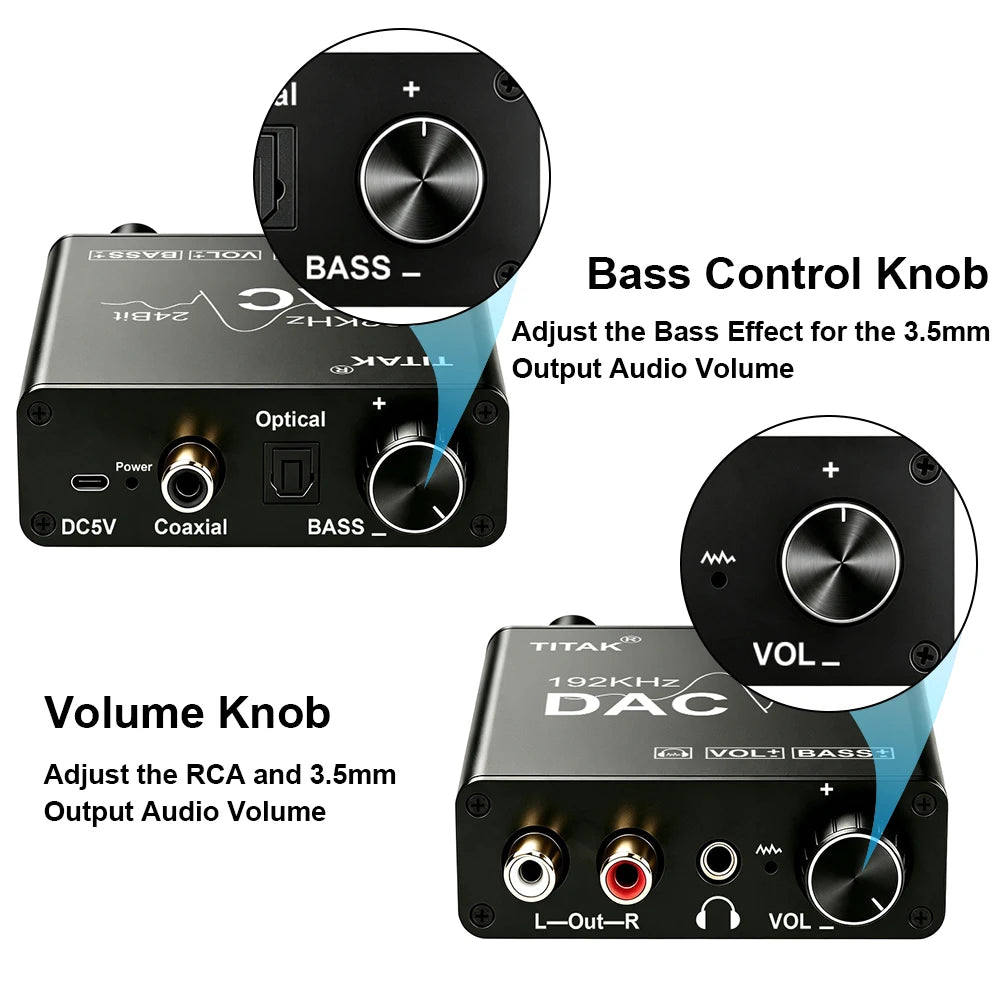

Control Headphone Volume and Bass from the Converter
The unit supports PCM audio up to 192 kHz / 24-bit and includes physical volume and bass adjustment knobs. The supplied information lists support for 32–600Ω headphones. For correct operation, the source device should be set to SPDIF output using PCM format, and the volume should be turned down before powering on.
- Bridges optical/coaxial digital sources to analog RCA or 3.5mm equipment
- Built-in volume control can simplify headphone level adjustment
- Bass control gives you a direct way to change low-frequency output
How it works
Simple by design

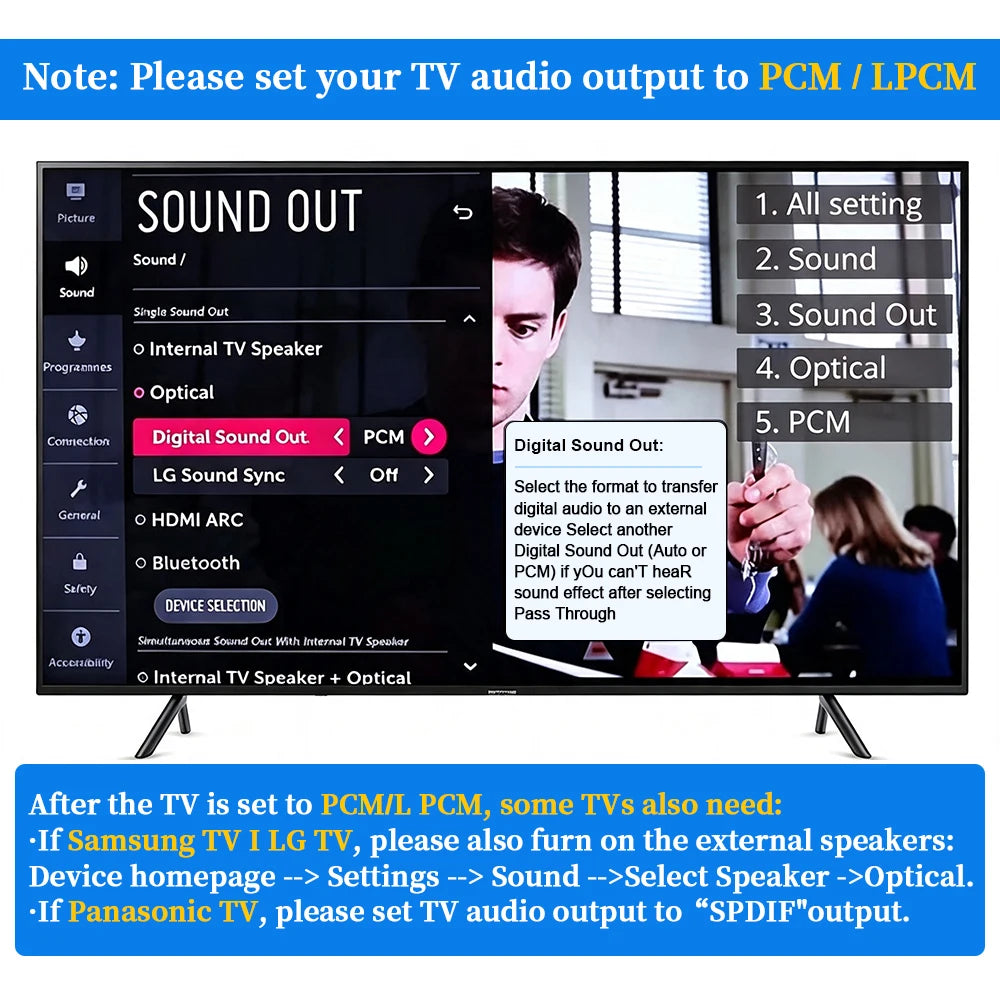

Set the source to SPDIF PCM
Configure the connected TV, console or player to output compatible SPDIF audio in PCM format before use.
Connect digital input and analog output
Connect optical or coaxial audio into the DAC, then use RCA or 3.5 mm output for the compatible analog device.
Lower volume before power-on, then adjust
Turn the volume control down before powering the unit, then raise volume and adjust bass gradually after the signal is working.
The specifics
Product details
- Product type
- Digital-to-analog audio converter / DAC

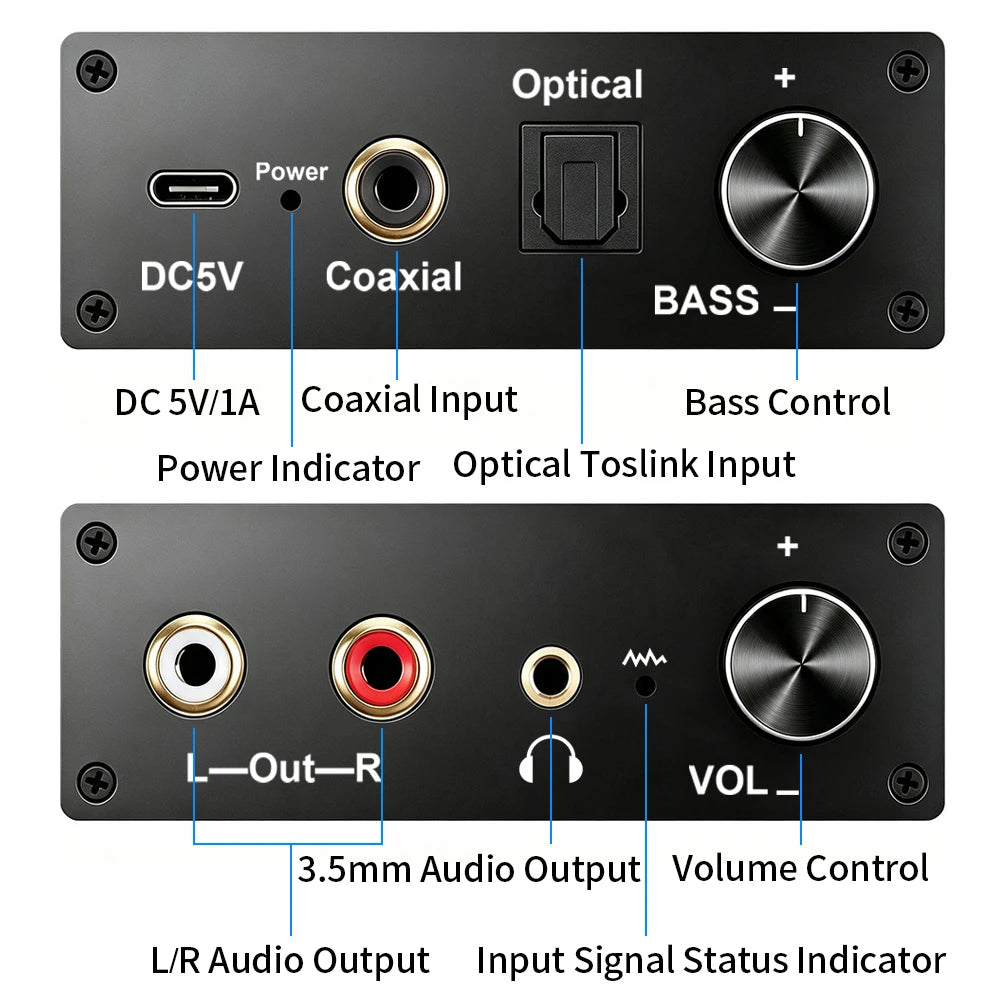

- Digital inputs
- Optical Toslink / SPDIF; coaxial
- Analog outputs
- Stereo RCA; 3.5 mm headphone jack
- Supported audio format
- PCM listed in detailed specification
- Sampling rate
- Up to 192 kHz
- Bit depth
- Up to 24-bit
- Headphone impedance
- 32–600Ω listed
- Controls
- Volume and bass knobs
- Frequency response
- 20 Hz–20 kHz listed
- Power
- 5 V working voltage
- Bluetooth
- No
- Wi-Fi
- No
- Approx. size
- 76 × 70 × 16 mm

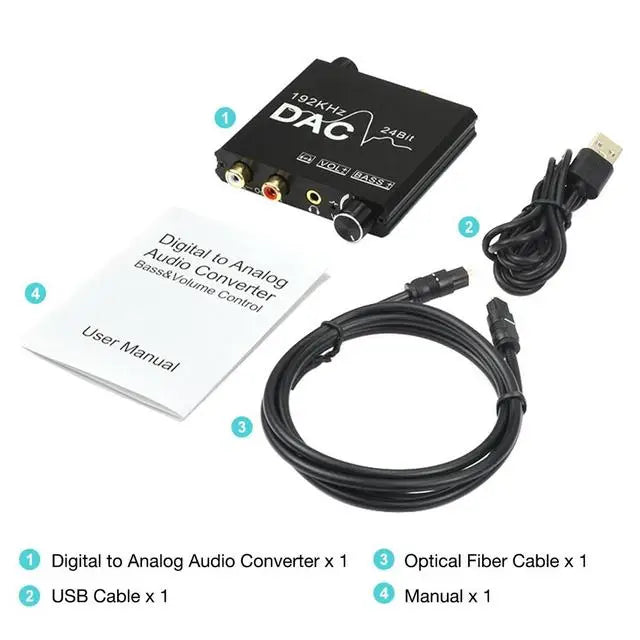

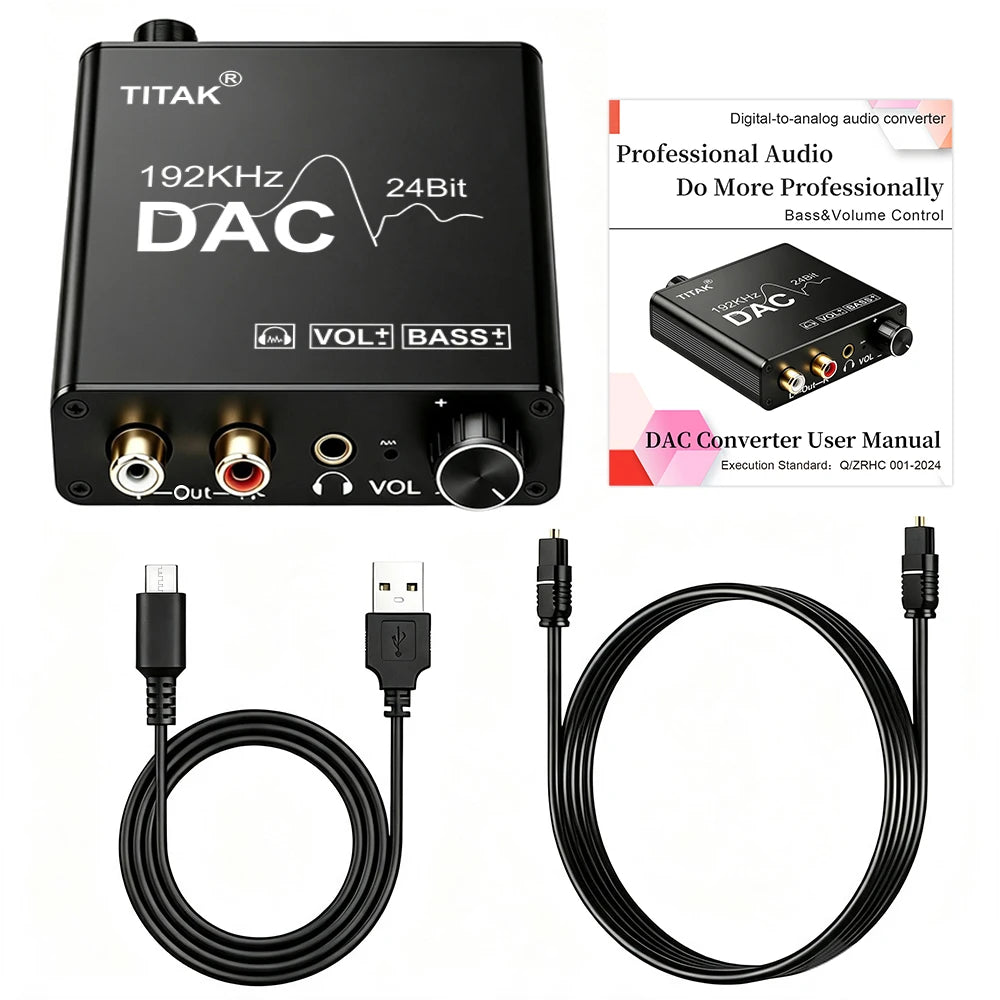

- Package
- DAC, user manual, 1 m optical cable, USB power cable
Buying from ByOurielle
Our promise to you
Shipping information
View delivery information before placing your order.
Returns & refunds
Read the eligibility and steps in our returns policy.
Questions about your order?
Contact ByOurielle before or after your purchase.
FAQ
Good to know before you order
What problem does this DAC solve?
It converts compatible optical or coaxial digital PCM audio into analog RCA or 3.5 mm output for equipment that needs an analog audio connection.
What audio setting should I use on the source device?
The supplied instructions say to select SPDIF output and set the source audio format to PCM.
Does it support Dolby or DTS bitstream audio?
The detailed instructions specify PCM. Do not assume compressed Dolby or DTS bitstreams are supported; set the source to PCM for use.
Can I connect headphones directly?
Yes. A 3.5 mm headphone output is provided, and the product information lists headphone impedance support from 32 to 600Ω.
Why should I lower the volume before powering it on?
The supplied safety note instructs users to turn the volume down before power-on to avoid an unexpectedly high output level.
