Application-focused fitment
Fitment is centered on 1/2- and 3/4-ton 4WD applications with a Dana 44 front axle.
Dana 44 Ball Joint Press and U-Joint Service Kit
$161.99
$291.99
Shipping and applicable taxes are shown at checkout.
30-day returns for unused items
Secure checkout powered by Shopify
Why it works
Press and adapter control for supported Dana 44 service
A manual C-frame press with receiving cups and adapters for supported Dana 44 4WD applications and the listed service tasks.
Key benefits
Why you will keep it within reach
Multiple service tasks
The kit is described for compatible ball joints, universal joints and truck brake anchor pins.
Cup and adapter assortment
Receiving tubes, cups and installation or removal adapters provide different support points around the manual press.
Details that matter
Adapters sized for supported Dana 44 jobs

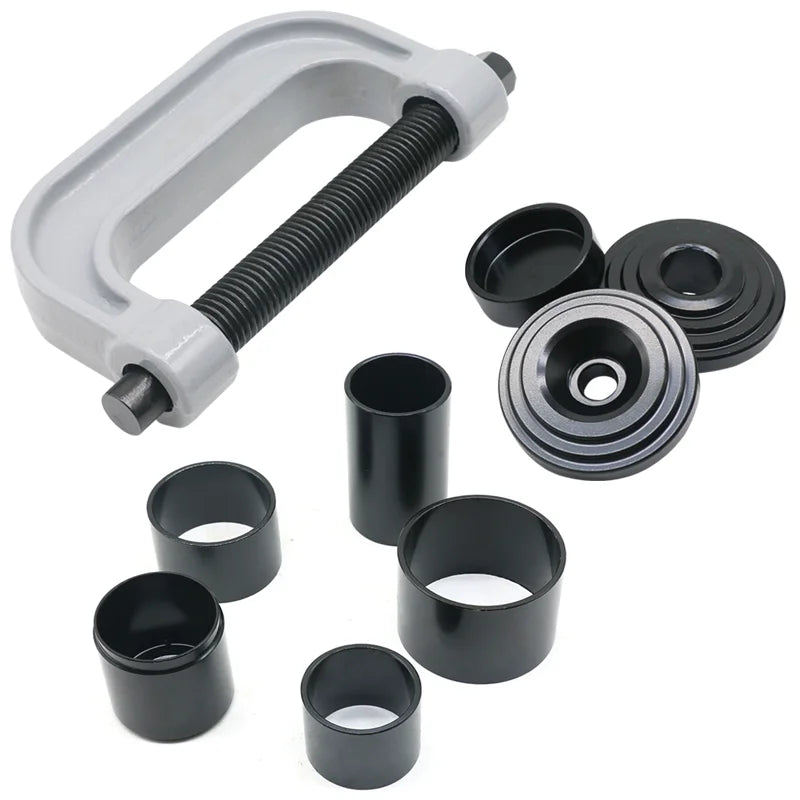

C-frame press body
The main C-frame and threaded screw provide the manual pressing action used with the selected receiving components.

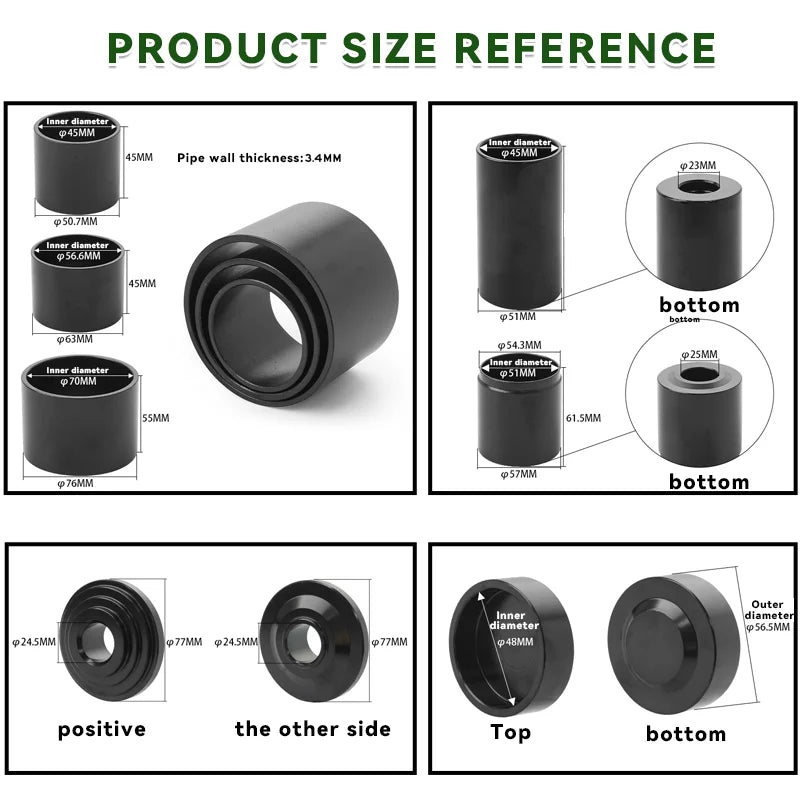

Receiving cups and tubes
Multiple cup and tube sizes support compatible parts during different service operations.

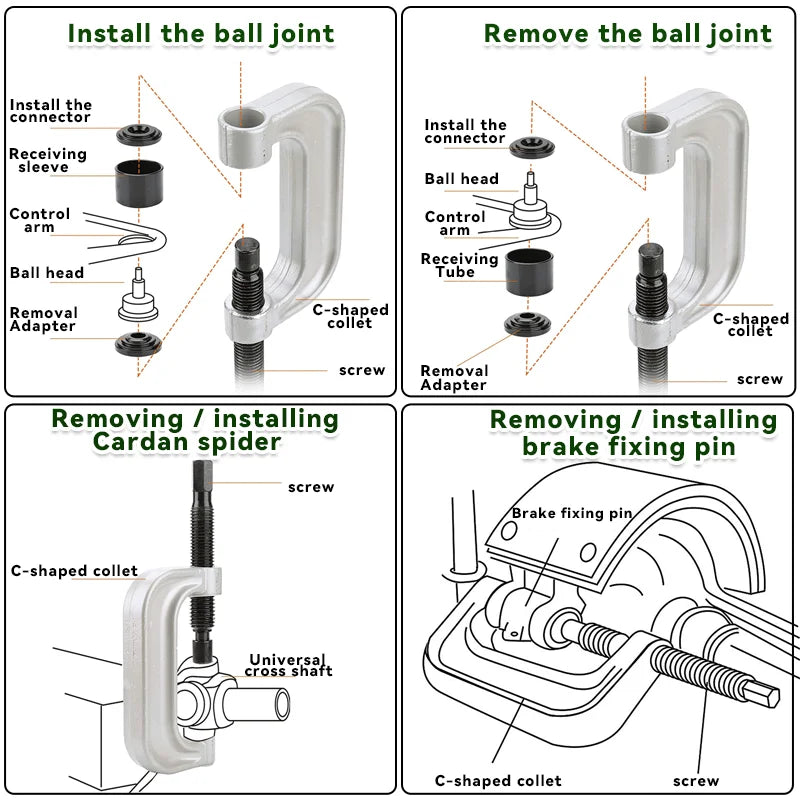

Service arrangements at a glance
The application diagram shows ball-joint, universal-joint and brake anchor-pin press arrangements for compatible work.
How it works
Simple by design
Verify fitment
Confirm the vehicle uses the supported Dana 44 front-axle application before starting.
Choose the adapters
Match the receiving cup or tube and installation or removal adapter to the specific service task.
Apply press force
Align the press squarely and follow the vehicle service procedure while applying controlled manual force.
The specifics
Product details
- Supported fitment
- 1/2- and 3/4-ton 4WD applications with Dana 44 front axle
- Model-year range
- 1967 onward; confirm exact Dana 44 fitment
- C-frame outer length
- 213 mm
- C-frame inner opening
- 160 mm
- Lead screw length
- 260 mm
- Screw diameter
- 27.3 mm
- Hex drive
- 22 mm
- Service tasks
- Compatible ball joints, U-joints and truck brake anchor pins
Buying from ByOurielle
Our promise to you
Reviewed before it ships
Every product page is checked against the actual item — what you read is what you get.
30-day returns
Unused items can be returned within 30 days of delivery under our returns policy.
Real support
Questions before or after your order? Contact us and a person will answer.
FAQ
Good to know before you order
Which vehicles is this kit intended for?
Fitment is centered on 1/2- and 3/4-ton 4WD applications with a Dana 44 front axle. Confirm the exact vehicle and axle before use.
What jobs is the kit intended for?
The documented tasks include compatible ball-joint, universal-joint and truck brake anchor-pin service.
Is this a universal press kit for every 2WD or 4WD vehicle?
No. The narrower Dana 44 fitment should be confirmed rather than treating the kit as universally compatible.
