Carry one meter for more everyday measurements
Voltage, current, resistance, capacitance, frequency, duty cycle, diode and continuity functions reduce the need to switch between separate basic testers.

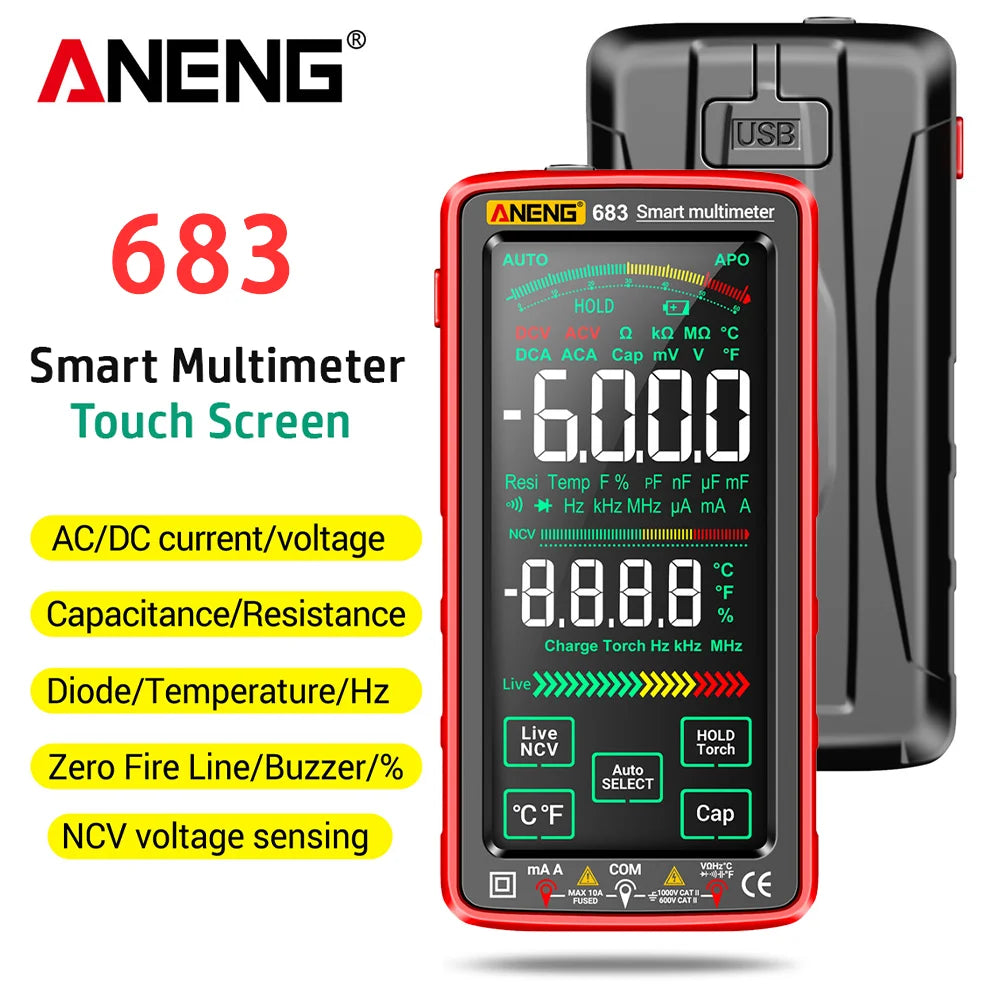

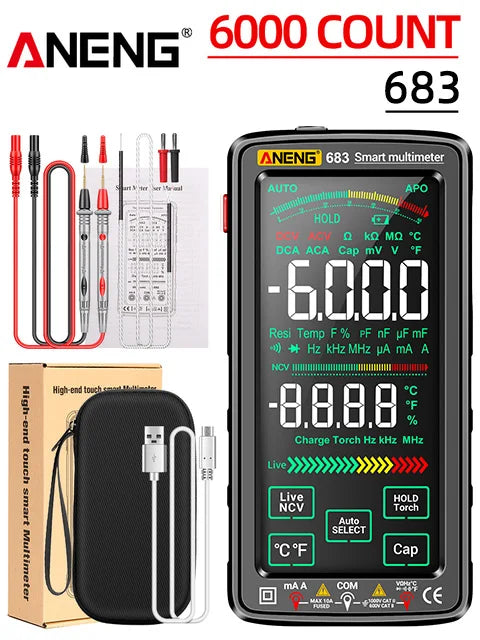

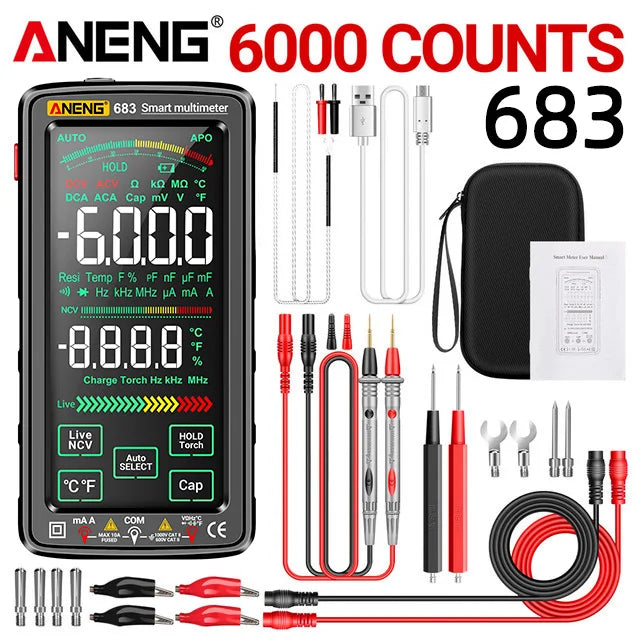

ANENG 683 Rechargeable 6000-Count Digital Multimeter
$94.99
$170.99
Shipping and applicable taxes are shown at checkout.
Secure checkout powered by Shopify
Why it works
Keep common electrical measurements, automatic selection and rechargeable power together in one 6000-count digital multimeter.
The ANENG 683 combines AC/DC voltage and current, resistance, capacitance, frequency, NCV, touch controls, data hold and USB rechargeable power.
Key benefits
Why you will keep it within reach
Choose automatic or manual function selection
Automatic mode can identify compatible voltage or resistance inputs, while manual selection lets you choose the function directly.
Make readings easier to view and preserve

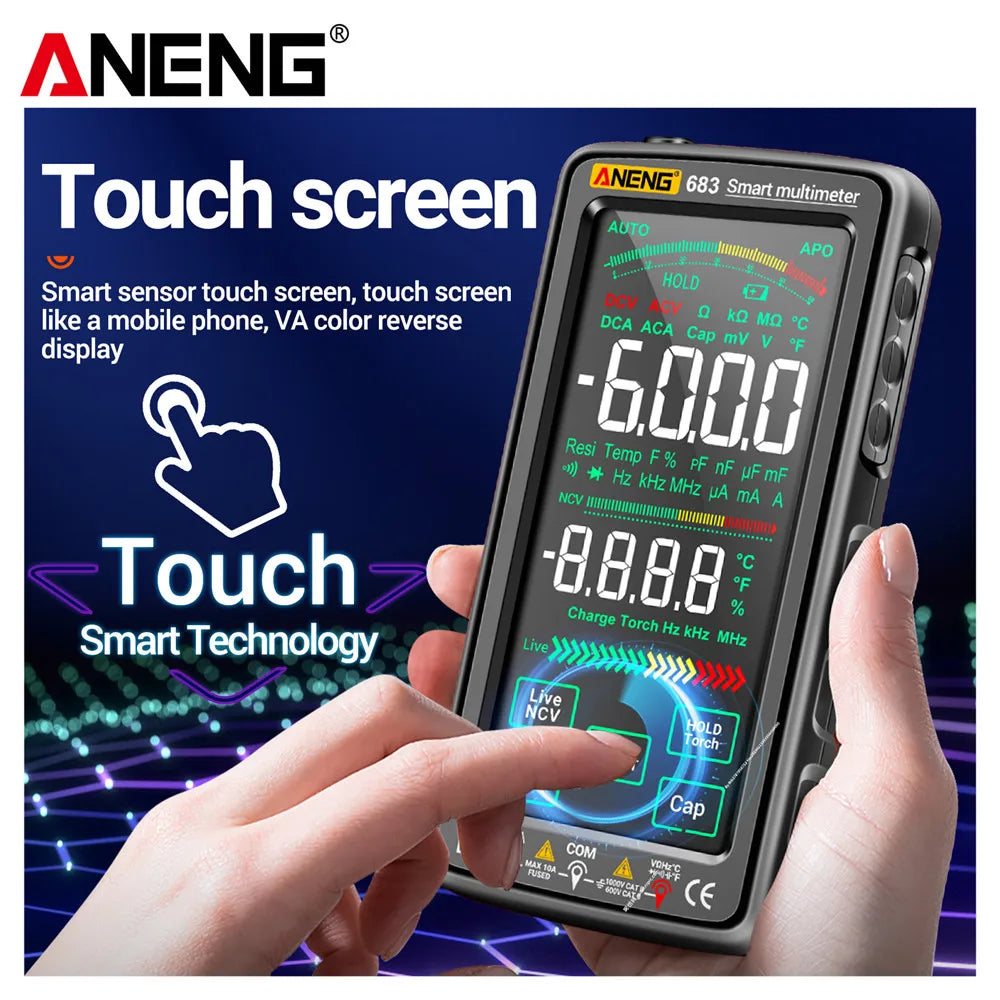

A color touch display, data hold and built-in flashlight help when the work area is dim or the meter position is inconvenient.
Recharge instead of replacing batteries
The 3.7V 2800mAh battery charges by USB for repeat use without a routine supply of disposable cells.
Details that matter
Product details
Bring Common Electrical Measurements into One Rechargeable Meter
The ANENG 683 combines AC/DC voltage and current measurement with resistance, capacitance, frequency, duty cycle, diode and continuity functions in one 6000-count digital multimeter. Automatic selection can identify compatible voltage or resistance inputs, while manual selection remains available when you want direct control of the function.
Read, Hold and Illuminate Measurements More Easily

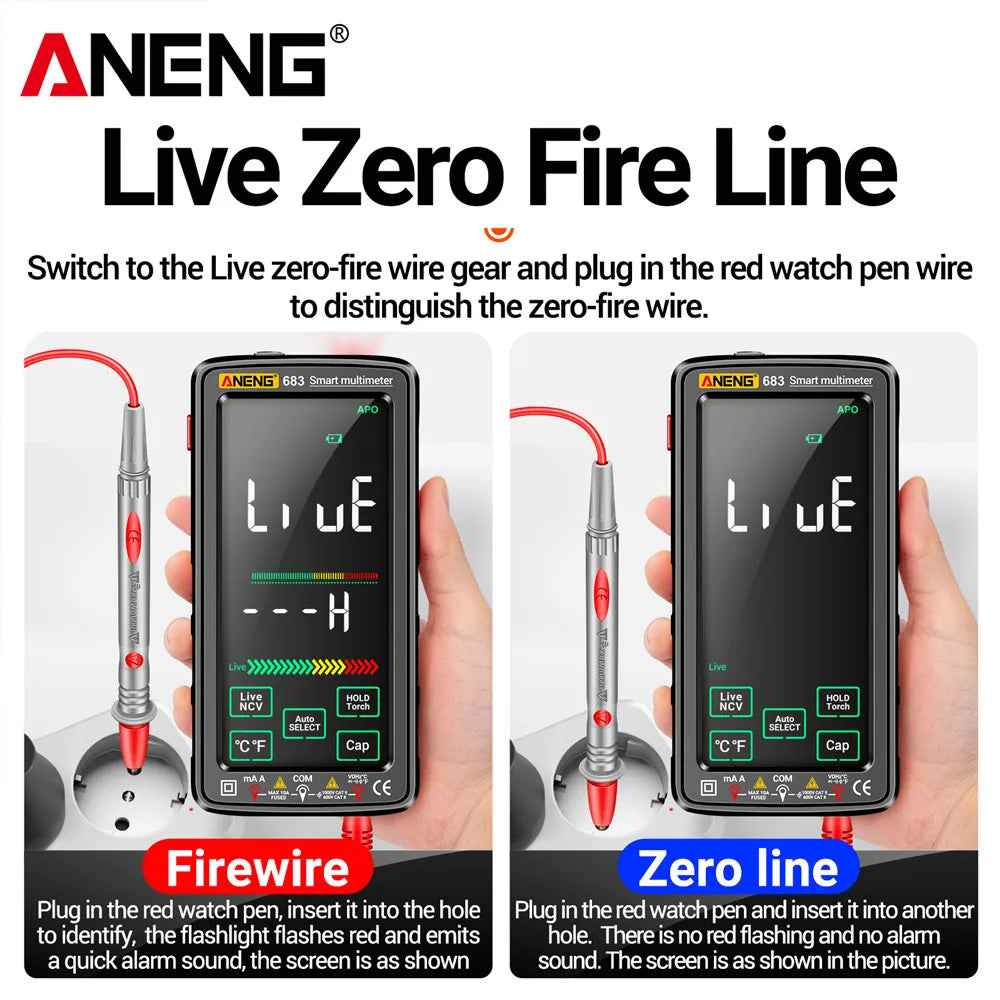

A color touch display, data hold and built-in flashlight help with everyday bench and field work, while NCV and live-line indication add contact-free reference functions for compatible electrical checks. The meter uses a rechargeable 3.7V 2800mAh battery with USB charging and includes automatic power-off.
- Multiple electrical functions reduce the need to carry separate basic testers
- Automatic and manual selection give you two ways to choose measurement functions
- Touch display, data hold and flashlight reduce friction while taking readings
- Rechargeable 2800mAh power avoids routine disposable-battery replacement
How it works
Simple by design
Choose automatic or manual mode
Use AUTO for compatible automatic voltage/resistance recognition or select the measurement function manually from the controls.

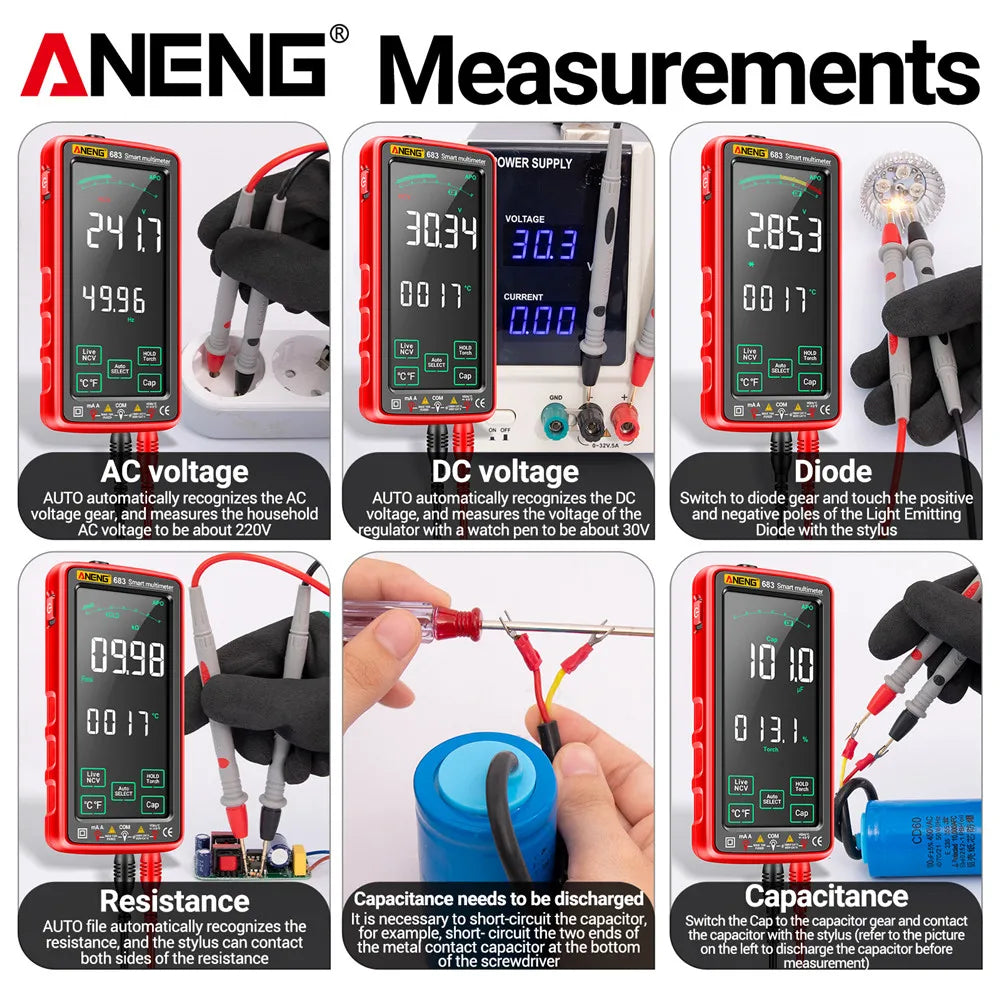

Connect the leads for the measurement
Use the correct terminals and test leads for the selected voltage, current, resistance or other supported function.
Read and hold the result when needed
Use the color display, data-hold function and flashlight as needed while following appropriate electrical safety practices.

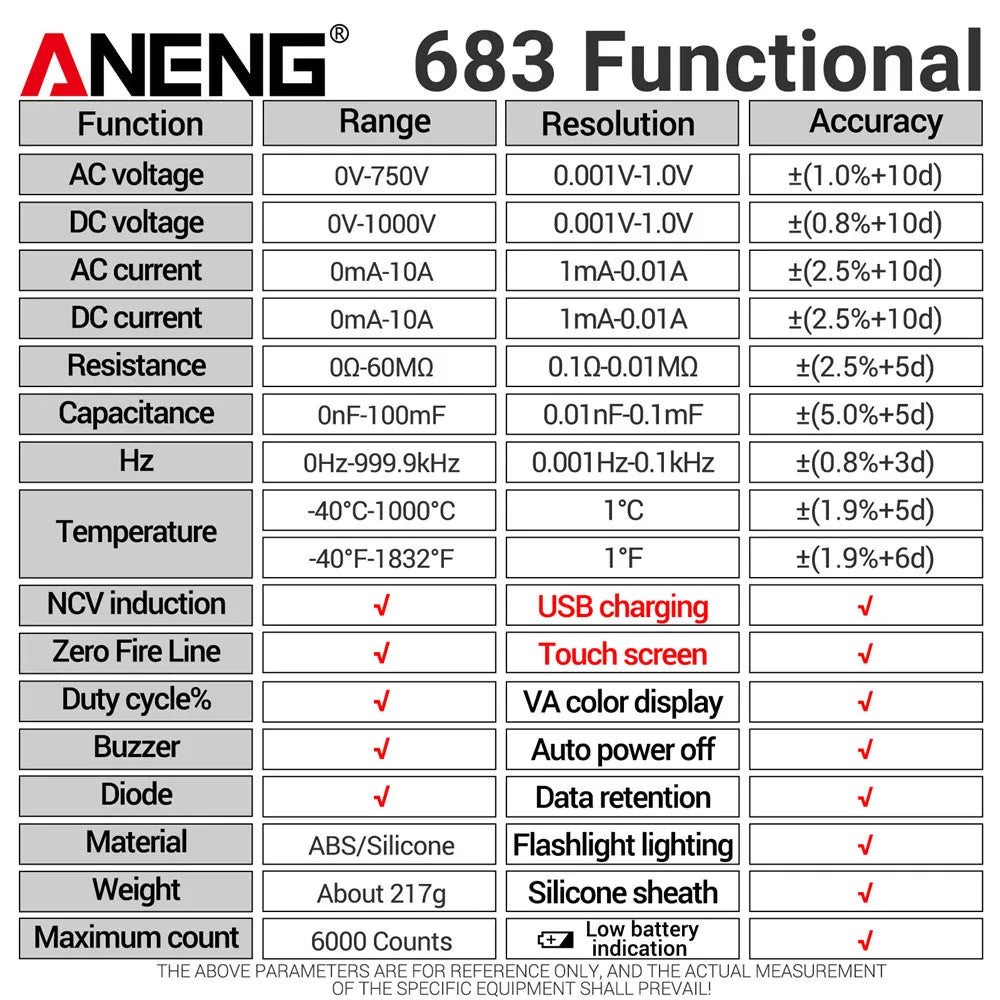

The specifics
Product details
- Brand
- ANENG
- Model
- 683
- Product type
- Digital multimeter
- Display
- 6000-count color touch display with analog bar
- Range selection
- Automatic and manual
- DC voltage
- Up to 1000 V
- AC voltage
- Up to 750 V
- AC/DC current
- Up to 10 A
- Resistance
- Up to 60 MΩ
- Capacitance
- Up to 100 mF
- Frequency
- Up to 999.9 kHz
- Other functions
- Duty cycle, diode, continuity, data hold, NCV, live-line indication
- Flashlight
- Yes
- Auto power off
- Yes
- Battery
- 3.7 V 2800 mAh rechargeable
- Charging
- USB
- Material
- ABS with silicone sheath
- Operating temperature
- 0°C to 40°C
Buying from ByOurielle
Our promise to you
Shipping information
View delivery information before placing your order.
Returns & refunds
Read the eligibility and steps in our returns policy.
Questions about your order?
Contact ByOurielle before or after your purchase.
FAQ
Good to know before you order
What does automatic selection do?
AUTO mode can identify compatible AC/DC voltage or resistance inputs. Manual function selection remains available when you want to choose the mode yourself.
What is the display count?
The ANENG 683 uses a 6000-count digital display with an analog bar.
Is the battery rechargeable?
Yes. It uses a 3.7V 2800mAh rechargeable battery with USB charging.

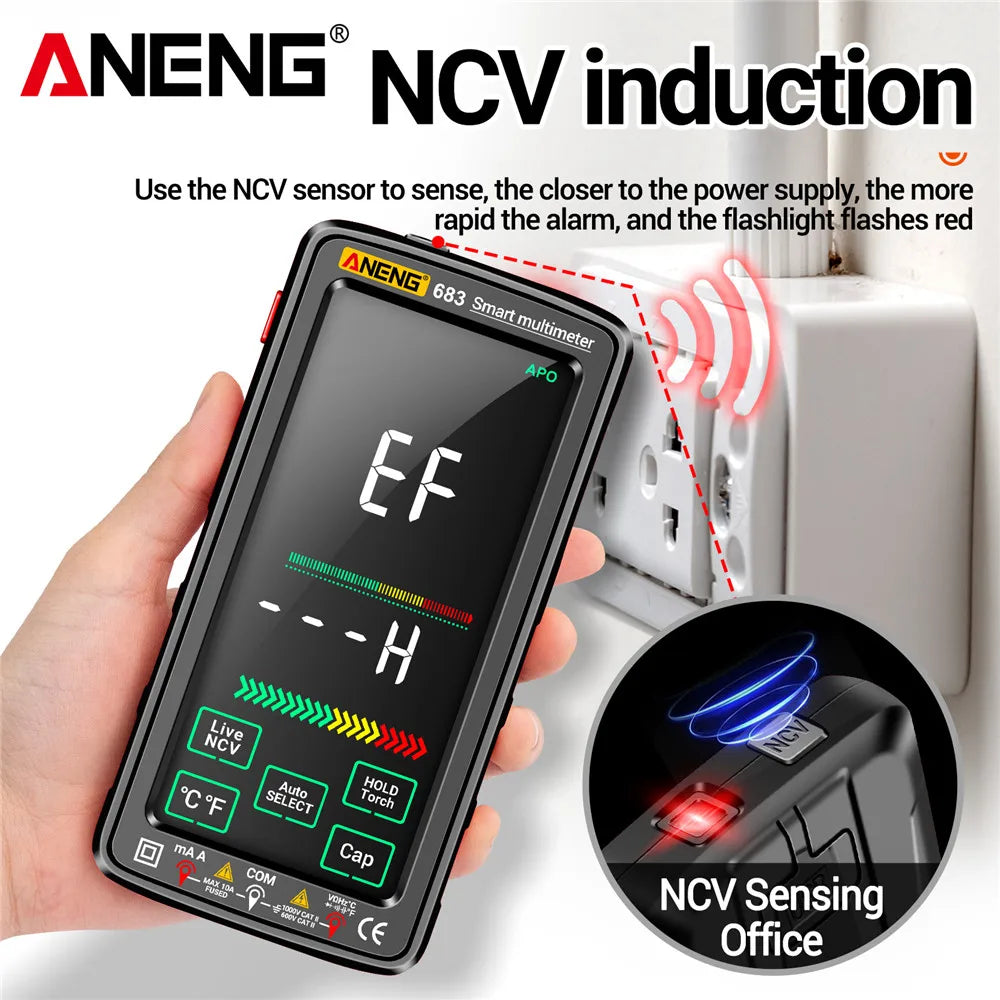

Does it include NCV?
Yes. NCV induction and live-line indication are included as reference functions for compatible electrical checks.
Can I use it on any electrical circuit?
No. Use only within the meter's ratings and correct input terminals, and follow appropriate electrical safety procedures for energized or hazardous circuits.
