SPECIFICATIONS

AC Current: SZ308 Multimeter

AC Voltage: 0V-750V

ANENG Model: ANENG SZ308

Battery Included: no

Brand Name: ANENG

Certification: NONE

Choice: yes

DC Current: 2mA - 10A

DC Voltage: 200mV - 1000V

DIY Supplies: Electrical

Display Type: Digital Display

HFE transistor: Yes

High-concerned chemical: none

Is Smart Device: no

Measuring Capacitance Range: ANENG SZ308 Multimeter

Measuring Inductance Range: ANENG Digital Multimeter

Measuring Resistance Range: 200-2000K

Model Number: ANENG SZ308 Multimeter

Operating Mode: Auto Range

Operating Temperature: 0 - 40 ℃

Origin: Mainland China

Semi-finishedproduct: No

Square wave: Yes

diode: Yes

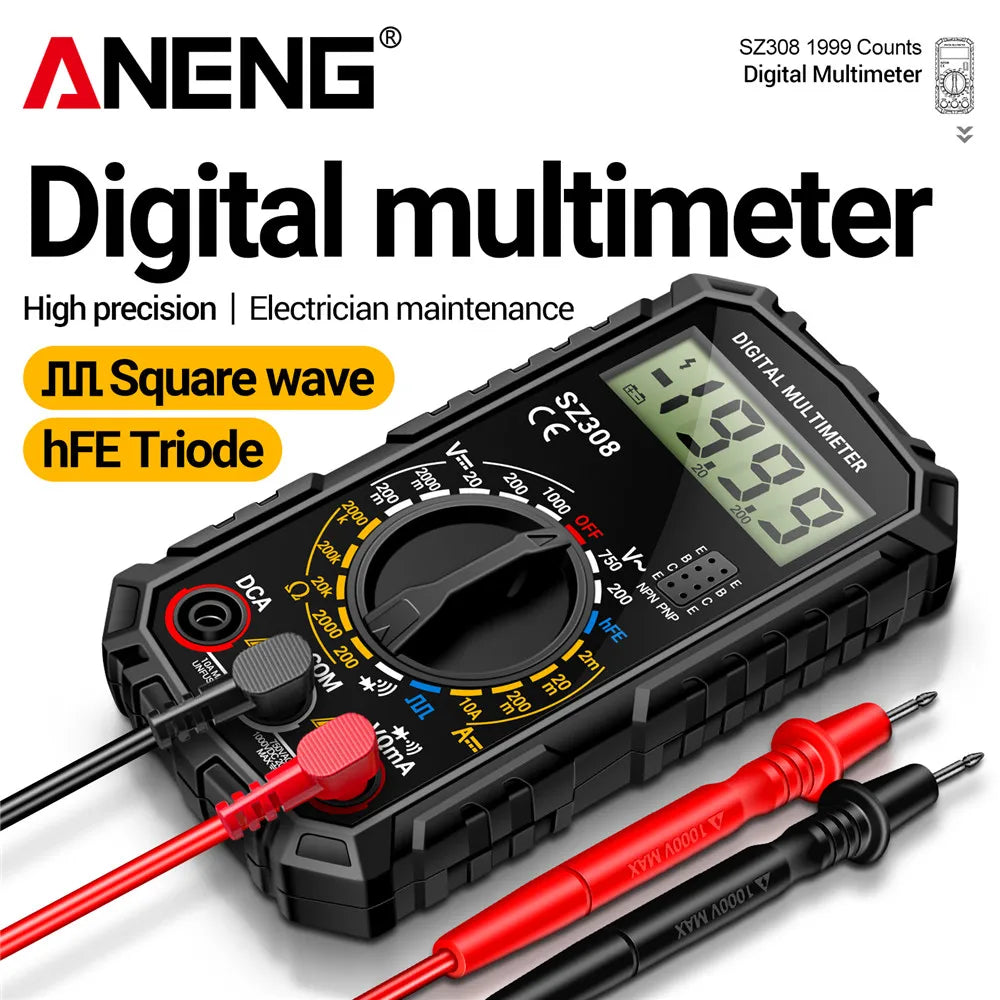

ANENG SZ308 1999 Count Digital Multimeter AC/DC High-Precision Multi-function Voltage Current Resistance Multimeter Tester Tools

Feature:

Function	Range	Resolution	Precision
AC voltage	0V-750V	0.1V-1V	±(1.0%+15)
DC voltage	200mV-1000V	0.1mV-1V	±(1.0%+10)
DC current	200mV-1000V	0.01mA-0.01A	±(1.5%+5)
Resistance	0Ω-2000kΩ	0.1Ω-1kΩ	±(1.2%+5)
hFE Triode	√	Material	ABS
Diode	√	Battery	6F22 9V Battery(without shipment)
Buzzer	√	Weight	72g
Square wave	√	Max digital display	1999 Counts
Low battery indication	√	Pen bus length	70cm/27.5inch

Packaging included:(Without Battery)
1 * Pen line
1 * Multimeter
1 * Manual
1 * Packing box
