Product introduction:

This series products belong to the latest generation of BSIDE brand smart multimeter！

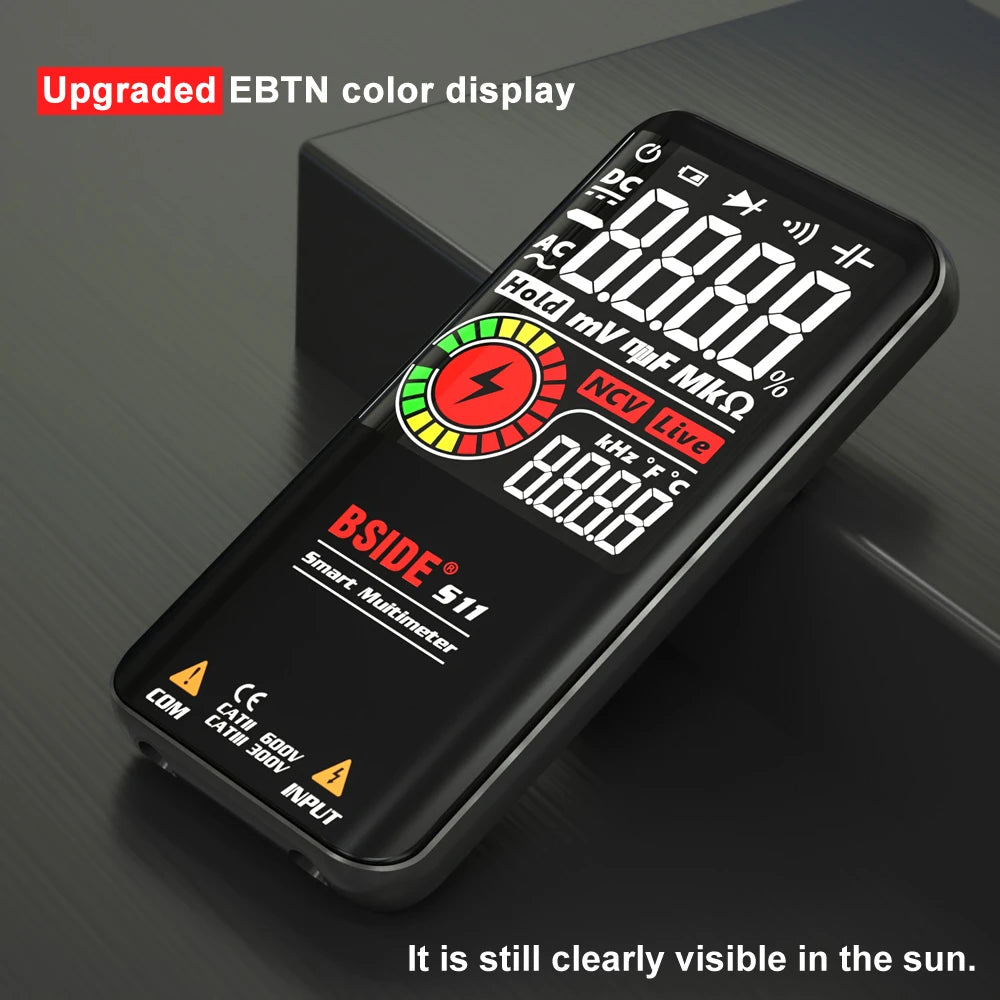

The 3.5-inch large display design provides an excellent user experience for buyers;
the easy-to-use, single button switch design is well recognized by buyers;
the ultra-thin body design is very portable.

Provide Two products to choose from (S10/S11). Exquisite appearance / reliable performance / complete functions, can meet the needs of different groups of people, and is very suitable as a gift.

SKU1：S10 EBTN color display [2*1.5V AAA Battery Powered (Not included)];

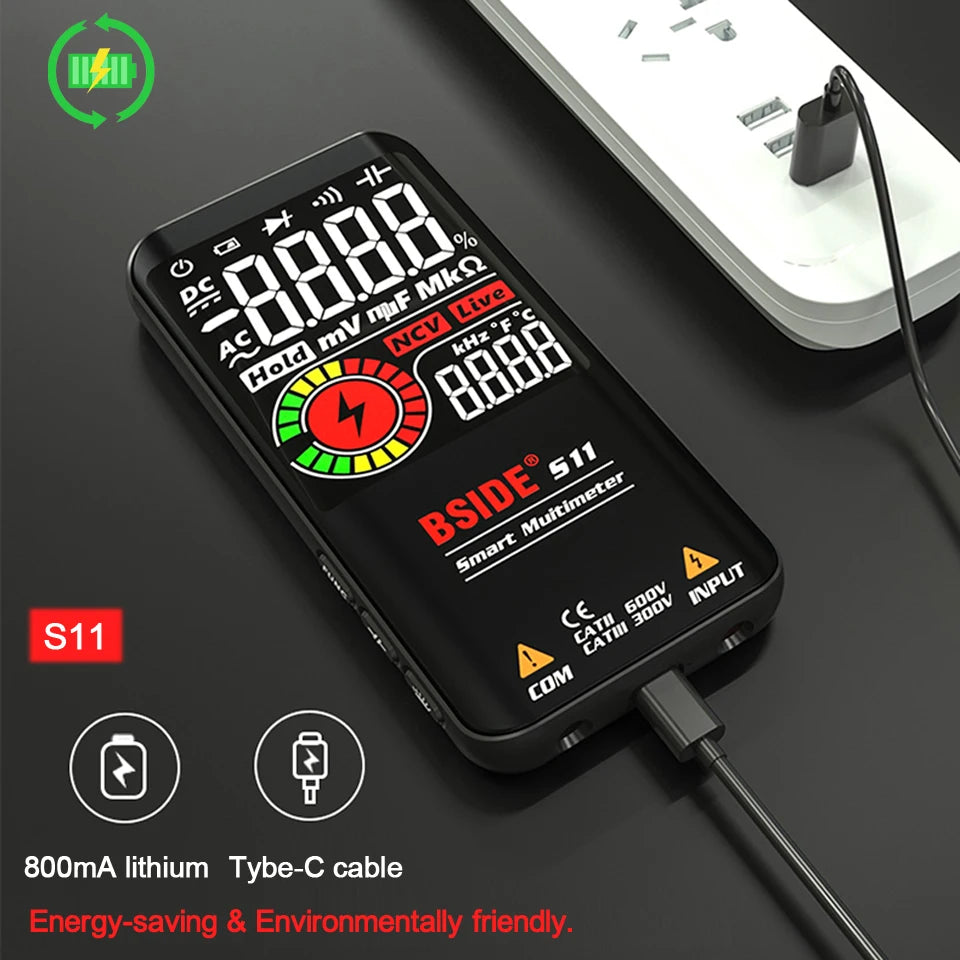

SKU2：S11-Black EBTN color display (USB charging、Built-in 800mA lithium battery).

Ordering Instructions:

SKU1：S11-Black EBTN color display (USB charging、Built-in 800mA lithium battery).

SKU2：S10 EBTN color display [2*1.5V AAA Battery Powered (Not included)];

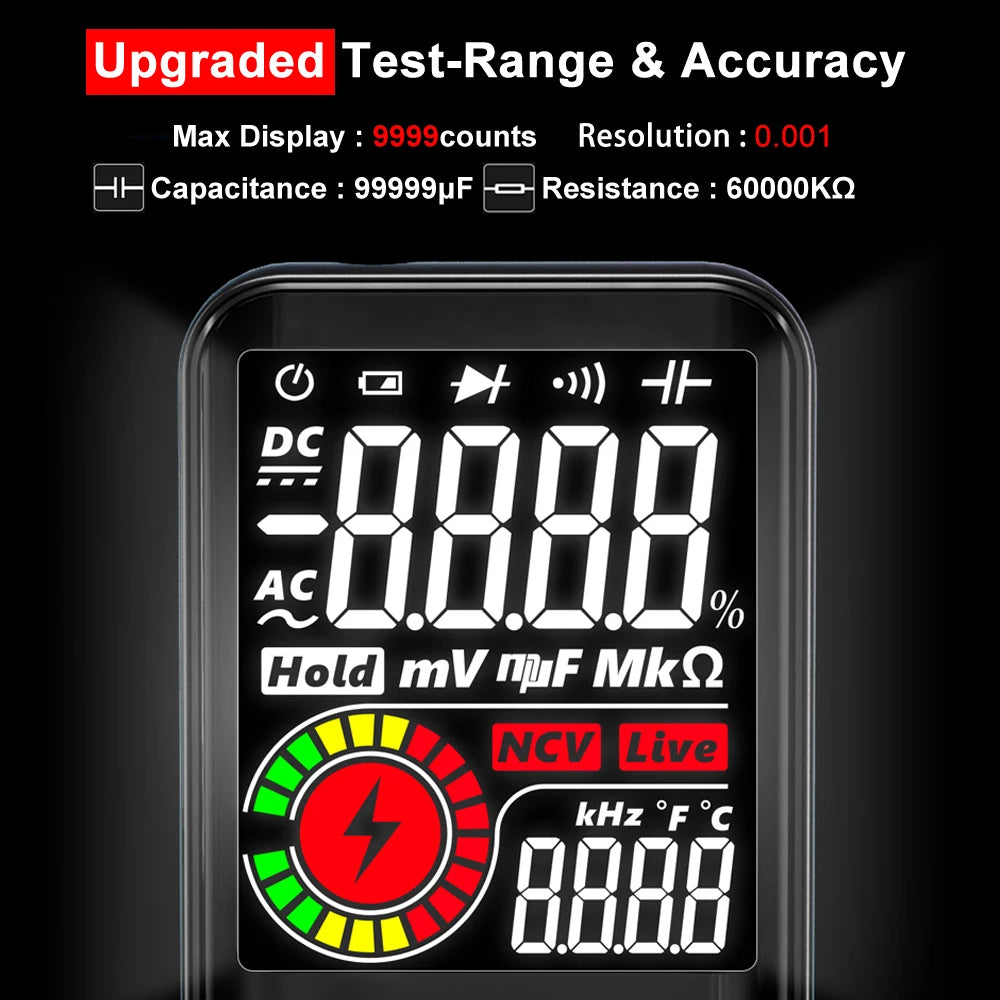

Specifications:

Display: 9999 counts.

Screen: 3.5 inch.

DC Voltage: 0~620V ±(0.5%+3); Resolution: 0.001V.

AC Voltage: 0~620V ±(0.5%+5); Resolution: 0.001V.

Resistance:1Ω-999.9Ω ±(2.0%+5); 1kΩ-60MΩ ±(1.0%+3); Resolution: 0.11Ω.

Capacitance: 1nF-999.9nF ±(6.0%+5); 1uF-99.99mF ±(3.0%+3); Resolution: 0.001nF.

Frequency:
1Hz-1000Hz ±(1.0%+5) (ACV:2V-10V);
Resolution: 0.001Hz.
1KHz-60KHz ±(1.0%+5) (ACV:10V-620V); Resolution: 0.001Hz.

Duty Cycle: 0.1%-99.9% ±(3.0%+5) (ACV:2V-620V); Resolution: 0.1%.

Diode: Auto identify diode if less than 3.0V.

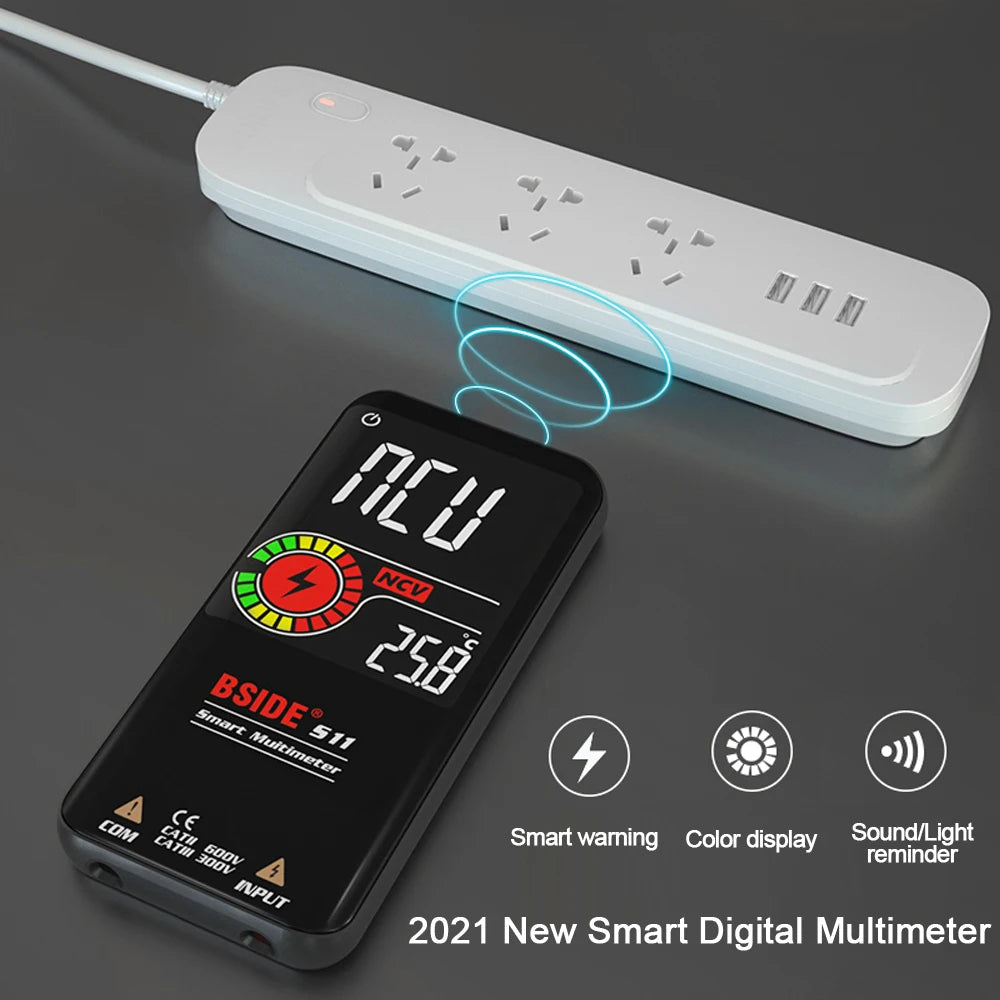

V-Alert(non-contact voltage detection): beep alarm sounds.

Live Check: alarm beep sounds, LCD screen display stripe.

Continuity: If the resistance is less than 30Ω, the beeper sounds.

S10 Power: 1.5V (AAA) x 2 (Not included)；

S11 Power: Built-in rechargeable lithium battery.

Size: 147*85*42mm.

Weight: 180g.

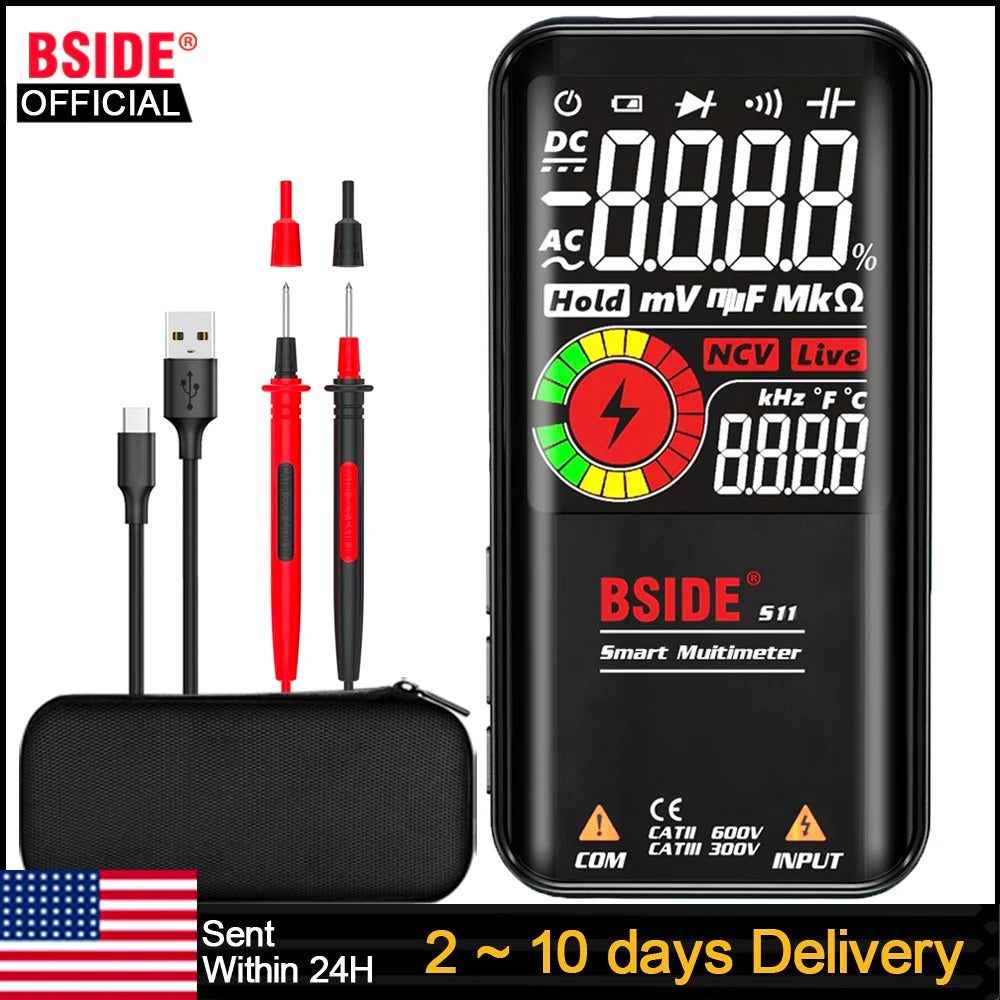

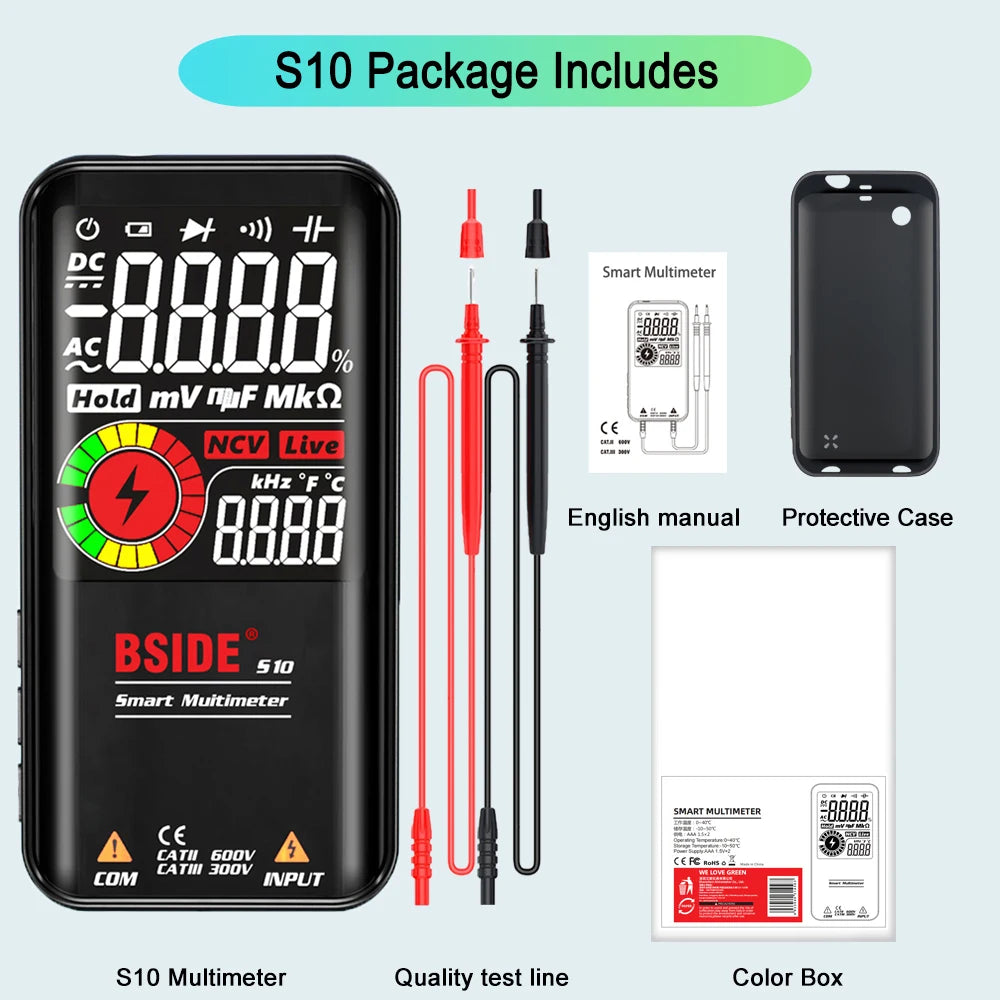

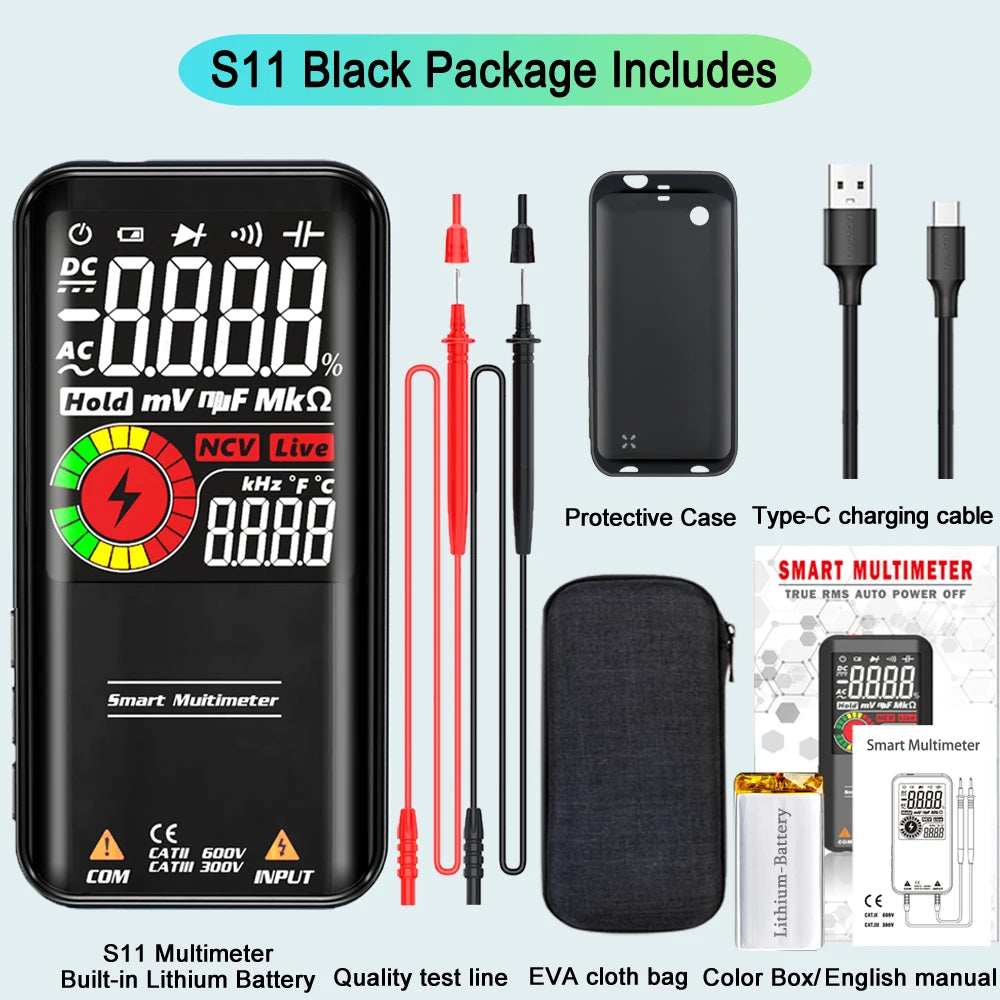

Package Includes:

1 * Multimeter.
1 * Test Lead.
1 * USB charging cable.（S11）

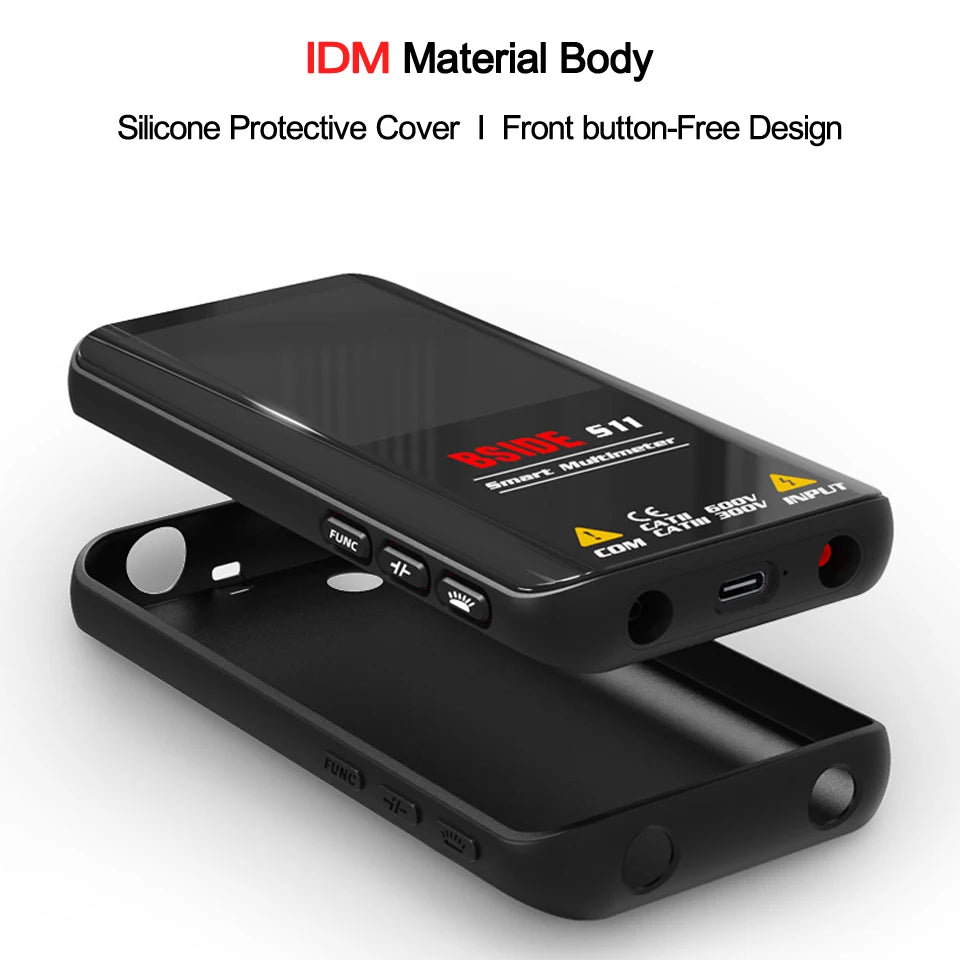

1 * EVA portable cloth bag.（S11） 1 * Protective shell.
1 * English user Manual.
1 * Packing Box.
1 x Warranty card (12 months)
