HANMATEK SF1 Wall Scanner | ByOurielle

Why it works

Scan before you drill or mount so hidden studs, metal and live AC areas are easier to locate.

The SF1 brings wood-stud, metal and live AC wire detection into one handheld scanner, helping you plan drilling and mounting locations with more information and less guesswork.

Key benefits

Why you will keep it within reach

Less guesswork before drilling

Scan for hidden studs, metal and live AC areas before choosing where to drill, fasten or mount.

Several targets in one tool

Switch between wood, metal and live-wire scanning instead of reaching for separate detectors for each basic locating task.

Clearer scan feedback

LCD feedback helps you follow the scan as you move across a wall, ceiling or floor.

Modes for different wall tasks

Wood Exact and Deep modes give you two depth-focused options for common stud-finding work.

Details that matter

Product details

Plan Drilling and Mounting with Less Guesswork

The HANMATEK SF1 helps you scan walls, ceilings and floors before choosing where to drill or mount. It can look for wood studs, ferrous and non-ferrous metal, and live AC wiring, bringing several common locating tasks into one handheld detector instead of relying on visual guesswork alone.

Choose the Scan Mode for the Job

Wood Exact and Deep modes support different scan depths, while the LCD gives feedback as you move across the surface. Maximum detection depth depends on the target and surrounding material, so scan results should be treated as guidance and confirmed appropriately before work begins.

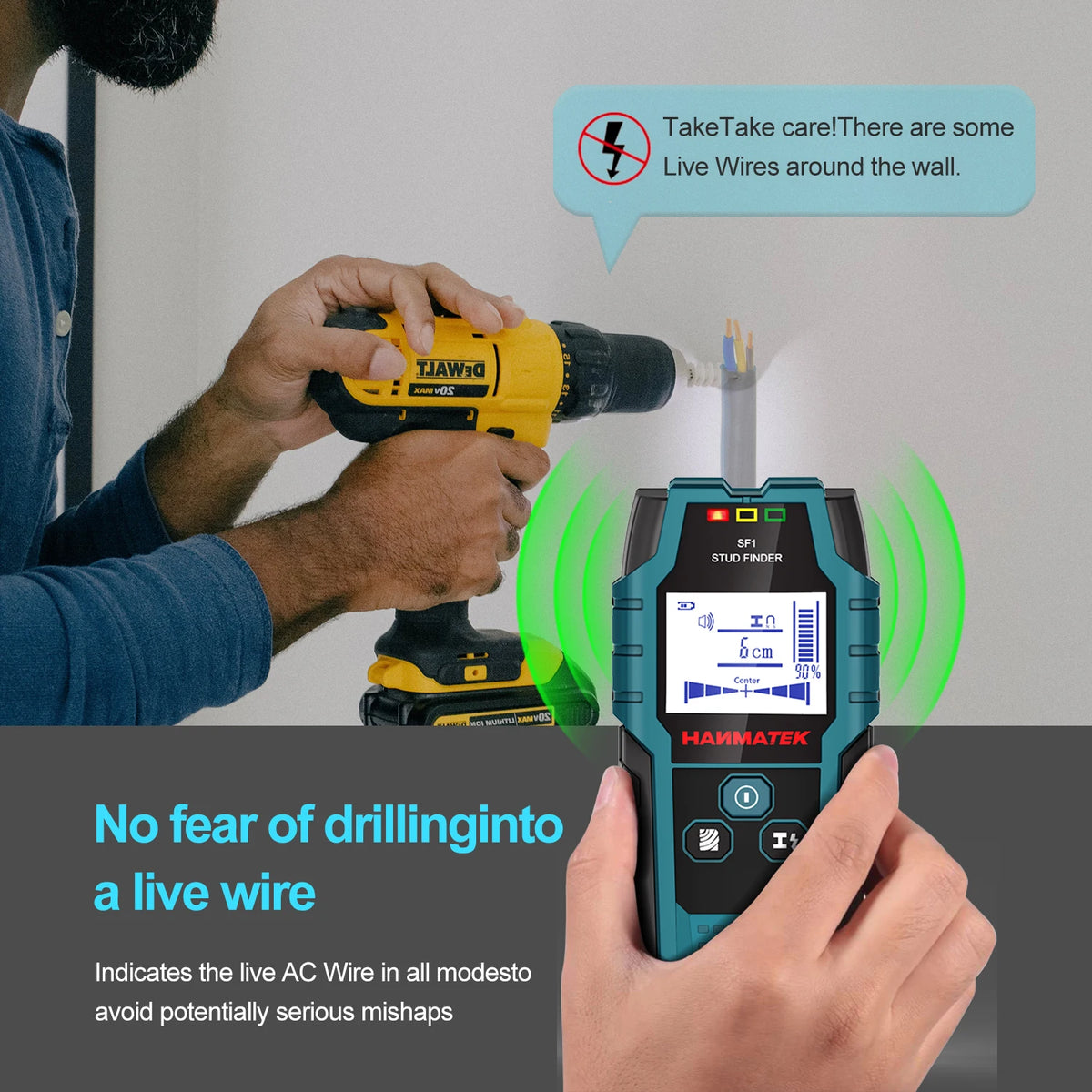

Scan for studs, metal and live AC areas
Use Exact or Deep wood modes for different wall tasks
LCD feedback supports a clearer scanning workflow

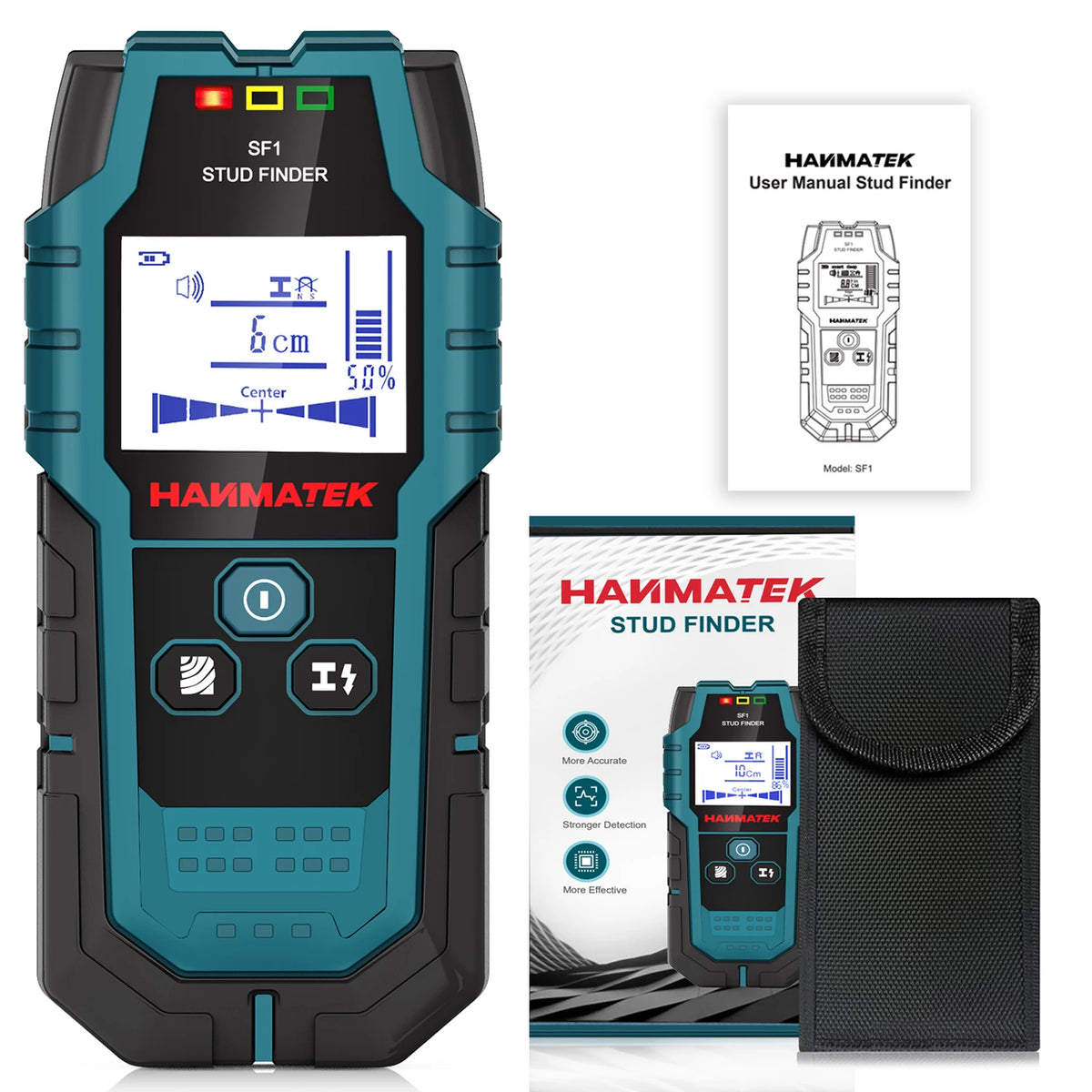

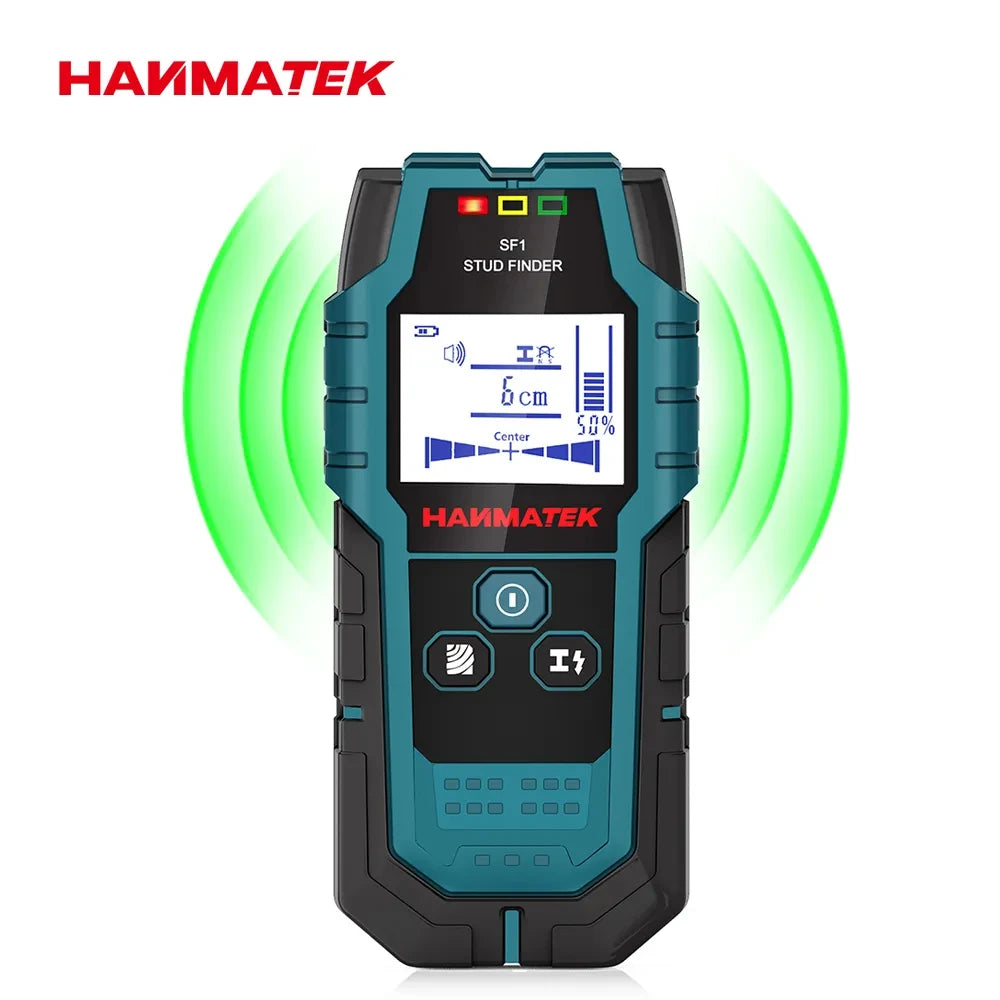

HANMATEK SF1 Wall Stud, Metal & Live Wire Finder

How it works

Simple by design

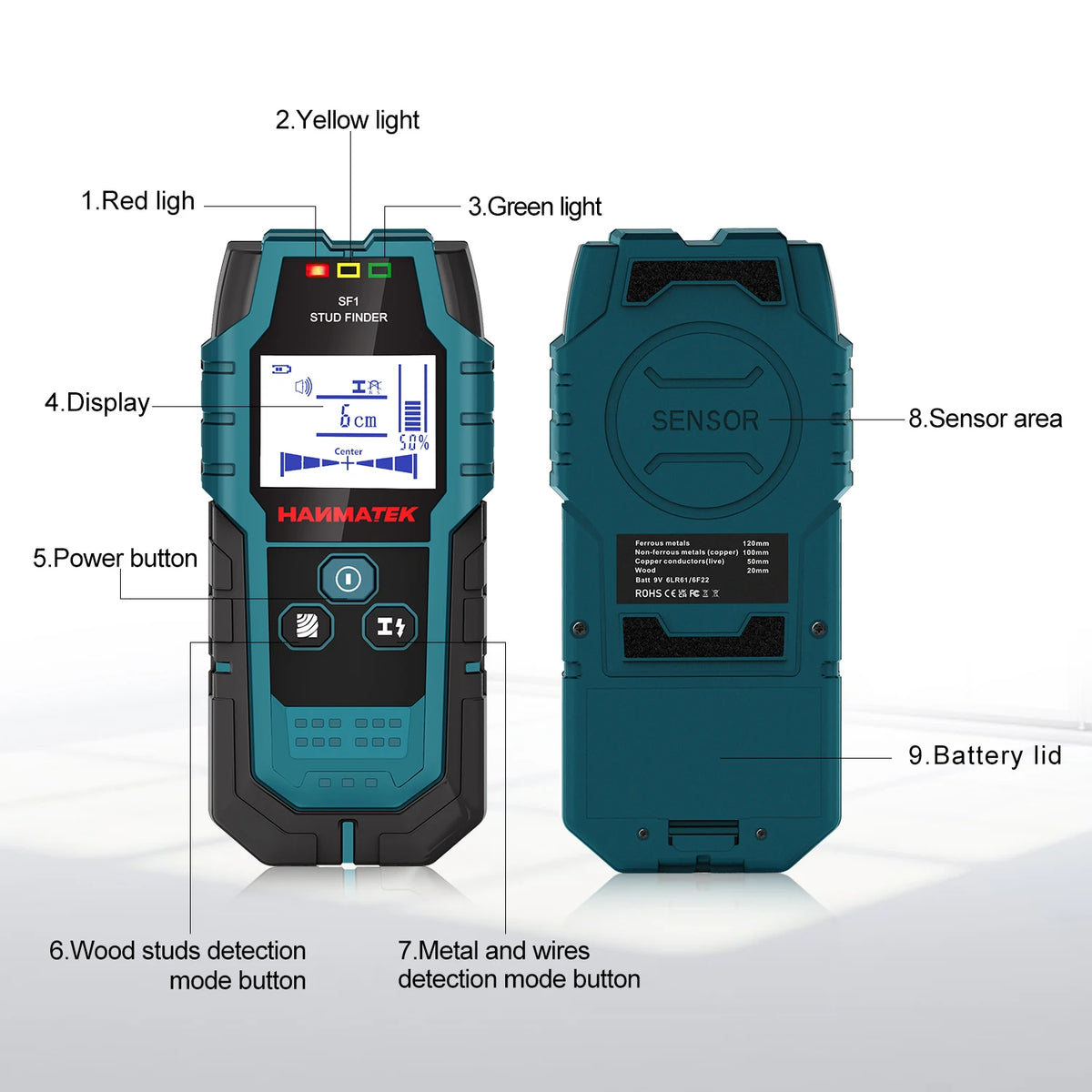

Power the detector

Install one 9V battery; the battery is not included.

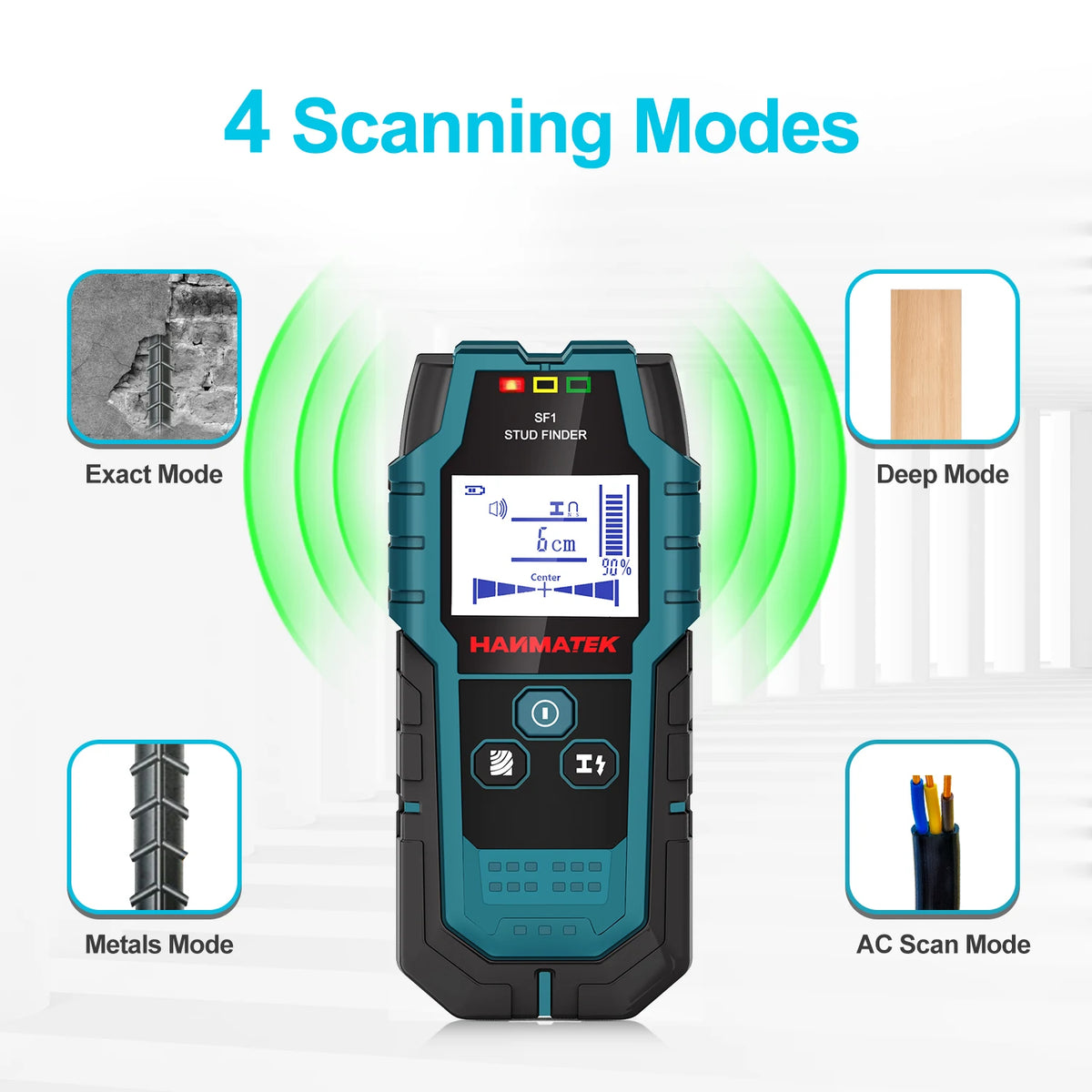

Select the scan mode

Choose the mode for wood studs, metal or live AC wiring.

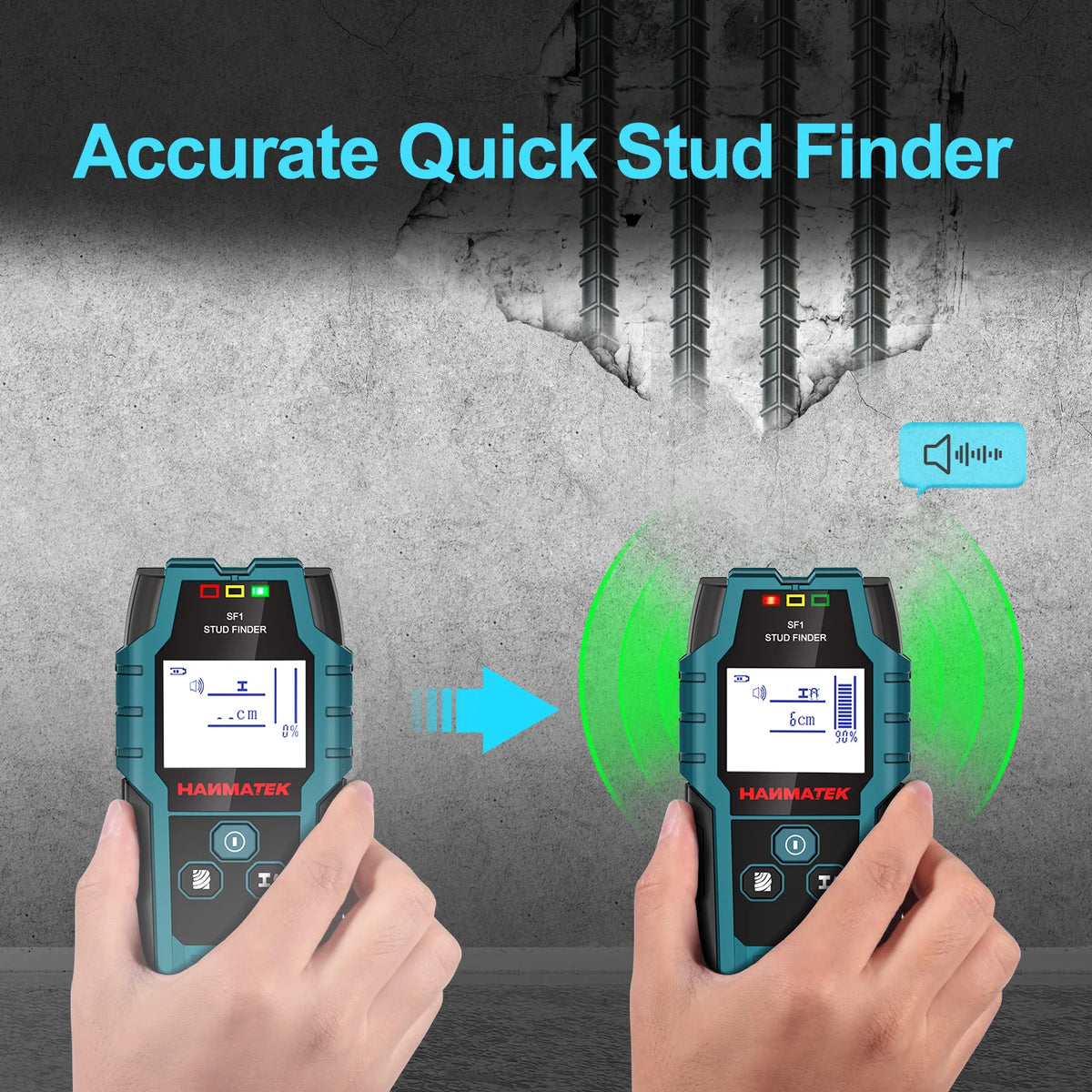

Scan slowly across the surface

Follow the display feedback and confirm the target area before drilling.

The specifics

Product details

Model: HANMATEK SF1
Display: LCD
Power: 1 × 9V battery
Battery included: No
Ferrous metal max depth: 120 mm / 4.7 in
Copper max depth: 100 mm / 4 in
Live AC max depth: 50 mm / 2 in
Wood Exact mode: 20 mm / 3/4 in
Wood Deep mode: 38 mm / 1-1/2 in
Auto power-off: Approx. 5 minutes of inactivity
Operating temperature: -10°C to 50°C
Operating humidity: 35–55% RH

Buying from ByOurielle

Our promise to you

Shipping information

View delivery information before placing your order.

Returns & refunds

Read the eligibility and steps in our returns policy.

Questions about your order?

Contact ByOurielle before or after your purchase.

FAQ

Good to know before you order

What can the SF1 scan for?

It is designed for wood studs, ferrous and non-ferrous metal, and live AC wiring.

Is the battery included?

No. The detector uses one 9V battery.

How deep can it scan?

Maximum depth depends on the target: up to 120 mm for ferrous metal, 100 mm for copper, 50 mm for live AC wiring, and 20 or 38 mm for wood depending on mode.

Can wall construction affect detection?

Yes. Moisture, metallic building materials, foil insulation, conductive wallpaper, nearby electromagnetic fields and target size can affect scanning performance.
