Keep the gauge attached while you adjust
The magnetic base holds to compatible ferrous surfaces so you can make setup changes with both hands available.

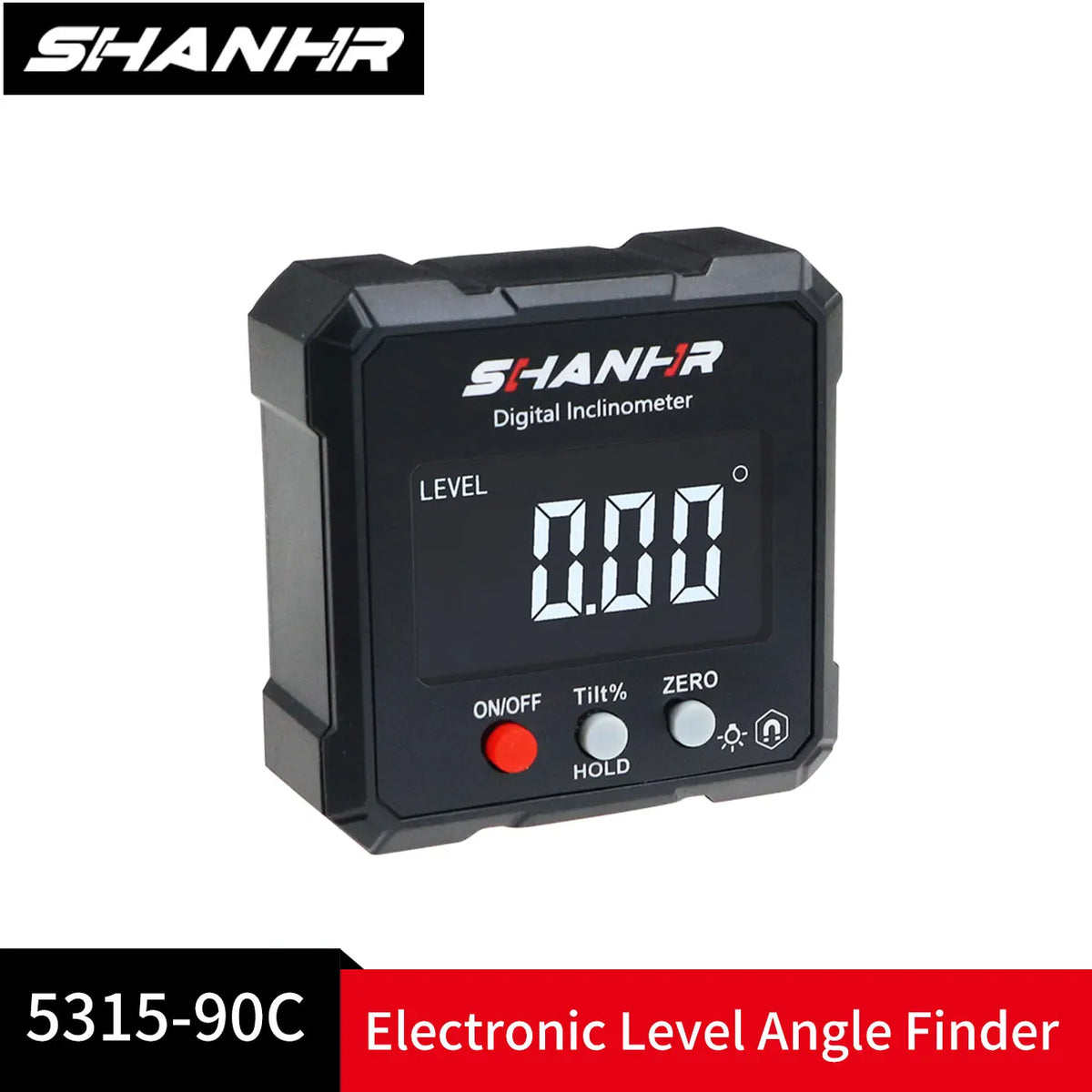

SHANHR Magnetic Digital Angle Finder with Backlight
$18.99
$32.99
Shipping and applicable taxes are shown at checkout.
Secure checkout powered by Shopify
Why it works
Check and compare angles with magnetic mounting, a backlit auto-flip display and a compact digital gauge.

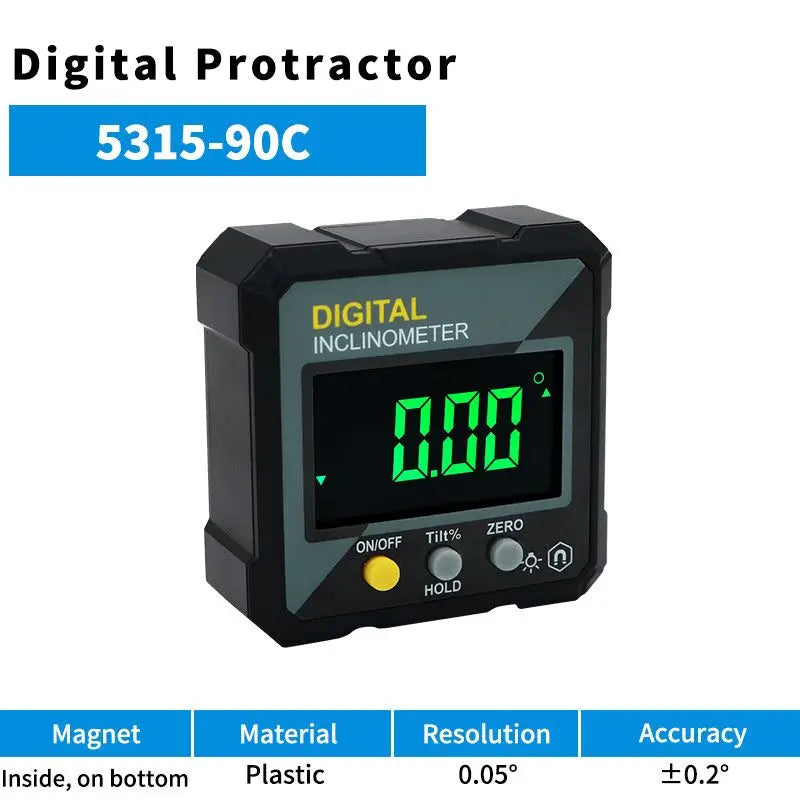

The SHANHR 5315-90C offers 4×90° measurement, 0.05° resolution, ±0.2° accuracy, relative measurement, data hold and a magnetic base.
Key benefits
Why you will keep it within reach
Read the display from changing orientations

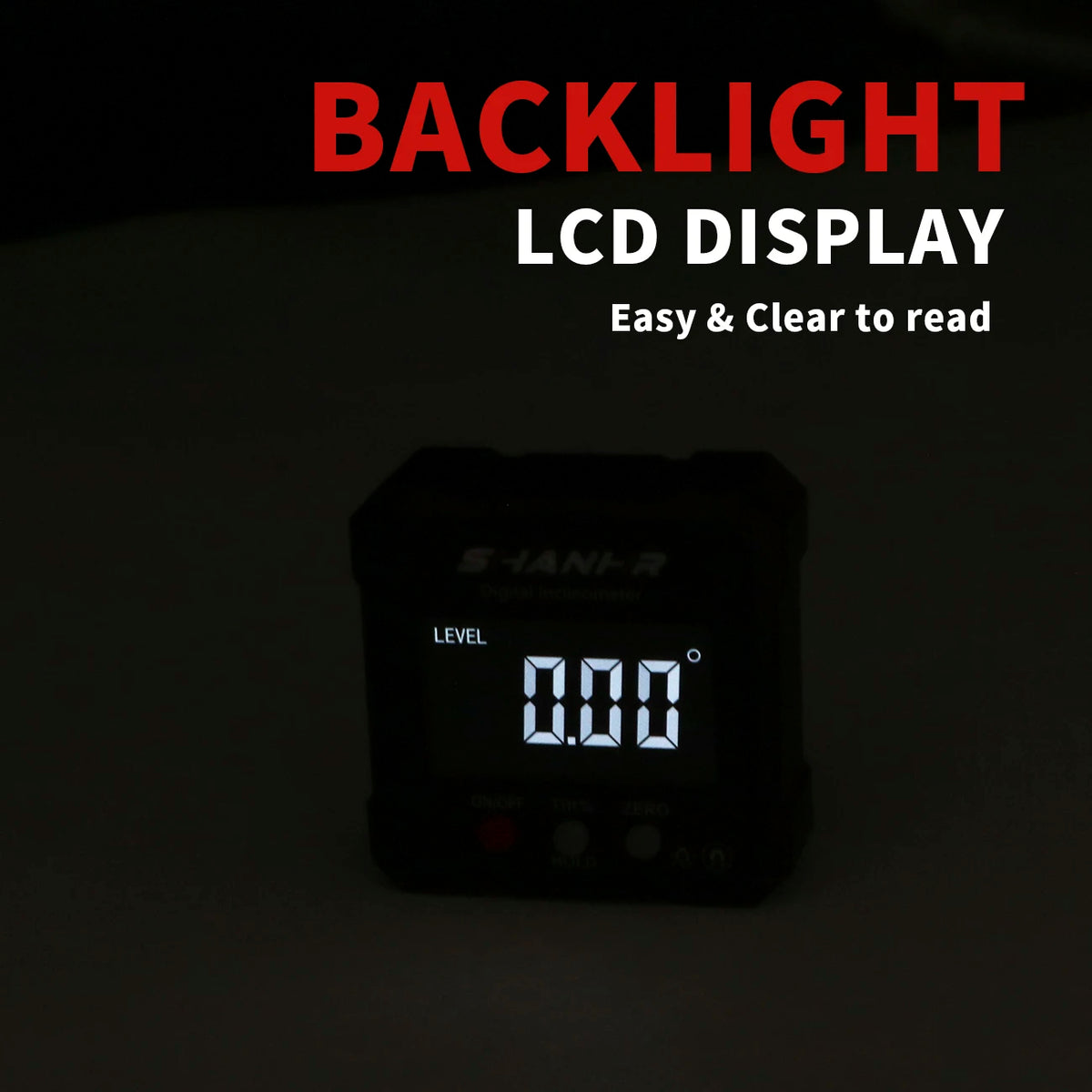

A backlit auto-reversing screen keeps the numeric value easier to read as the gauge rotates.
Compare surfaces from a custom zero
Relative measurement and zero setting let you use one position as the reference for the next angle.
Keep a compact angle tool close by
At about 57 × 55 × 26 mm and 80 g, the gauge fits easily into a workshop drawer or portable tool kit.
Details that matter
Product details
Check and Transfer Angles with a Clear Digital Reading
The SHANHR 5315-90C digital angle finder measures across a 4×90° range with 0.05° resolution and ±0.2° accuracy. It is useful for setup, alignment and bevel work when you want a direct numeric angle instead of relying only on a mechanical scale or visual estimate.
Attach It to Metal and Read It from Different Positions
A built-in magnetic base holds the gauge on compatible ferrous surfaces, while the backlit auto-reversing display helps keep the value readable as the tool changes orientation. Relative measurement and zero-setting let you compare surfaces, and data hold preserves a value when you need to move the gauge before reading it.
- Magnetic attachment keeps both hands available during setup
- Backlit auto-reversing display improves readability from different orientations
- Relative measurement simplifies comparing one angle with another
- Compact 80 g body is easy to keep in a workshop or tool kit
How it works
Simple by design
Place or attach the gauge
Set the tool on the surface to be measured or use the magnetic base on compatible ferrous metal.
Choose direct or relative measurement
Read the absolute angle or zero the gauge at a chosen reference to compare another position.
Use hold when the position is hard to view
Freeze the measurement before moving the gauge when you need a clearer view of the display.
The specifics
Product details
- Model
- SHANHR-5315-90C
- Product type
- Digital angle gauge
- Measuring range
- 4 × 90°
- Accuracy
- ±0.2°
- Repeatability
- ±0.1°
- Resolution
- 0.05°
- Display
- Backlit, auto-reversing
- Measurement modes
- Absolute and relative / zero setting
- Data hold
- Yes
- Mounting
- Magnetic base
- Power
- 2 × AAA batteries
- Batteries included
- No

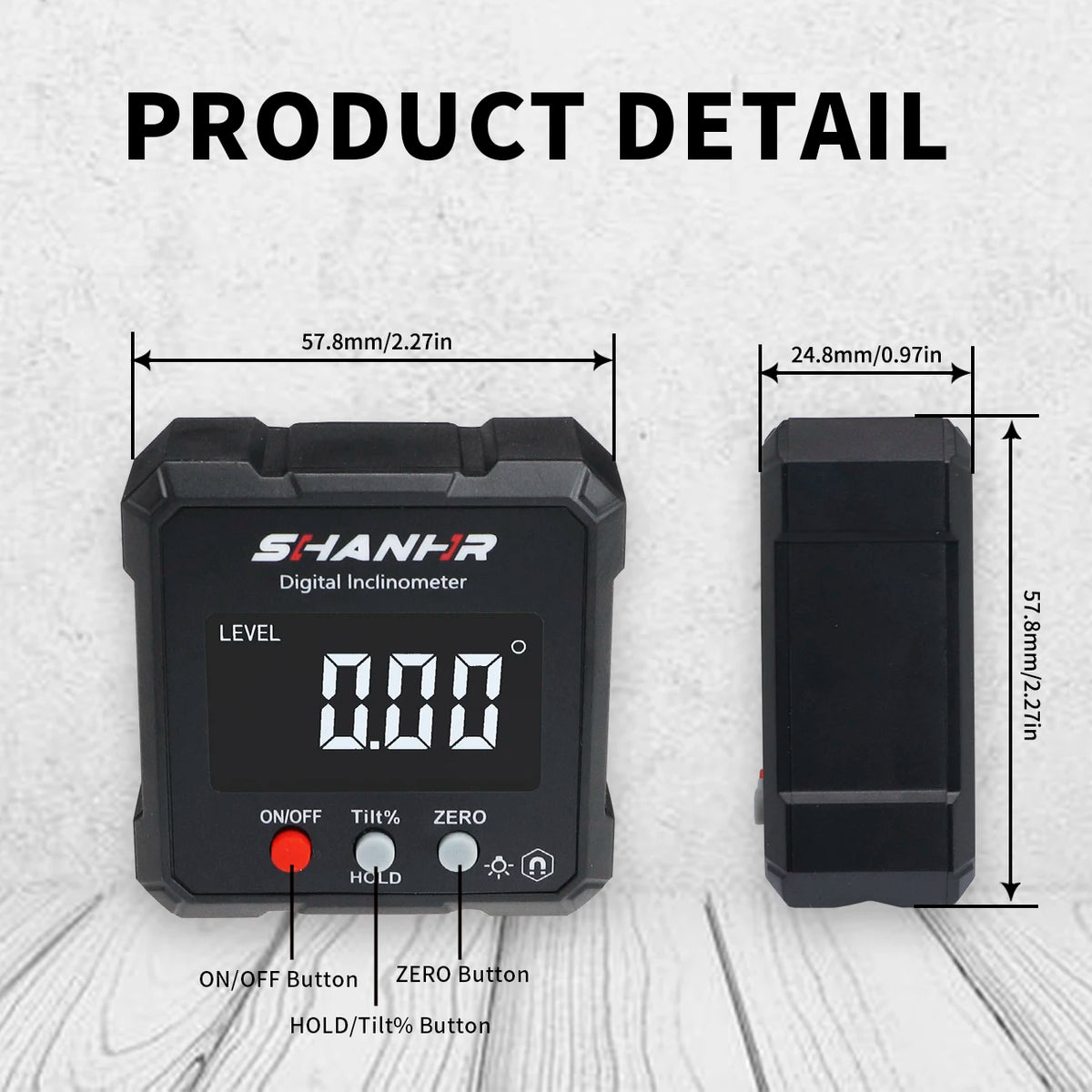

- Dimensions
- Approx. 57 × 55 × 26 mm
- Weight
- Approx. 80 g
Buying from ByOurielle
Our promise to you
Shipping information
View delivery information before placing your order.
Returns & refunds
Read the eligibility and steps in our returns policy.
Questions about your order?
Contact ByOurielle before or after your purchase.
FAQ
Good to know before you order
Can the gauge attach magnetically to a saw or machine?
It can attach to compatible ferrous metal surfaces using the built-in magnetic base.
Can I set a custom zero point?
Yes. Relative measurement lets you zero the gauge at a chosen reference angle.
Does the display flip automatically?
Yes. The backlit display auto-reverses as the tool changes orientation.
Are batteries included?
No. The tool requires two AAA batteries.
What comes with the gauge?

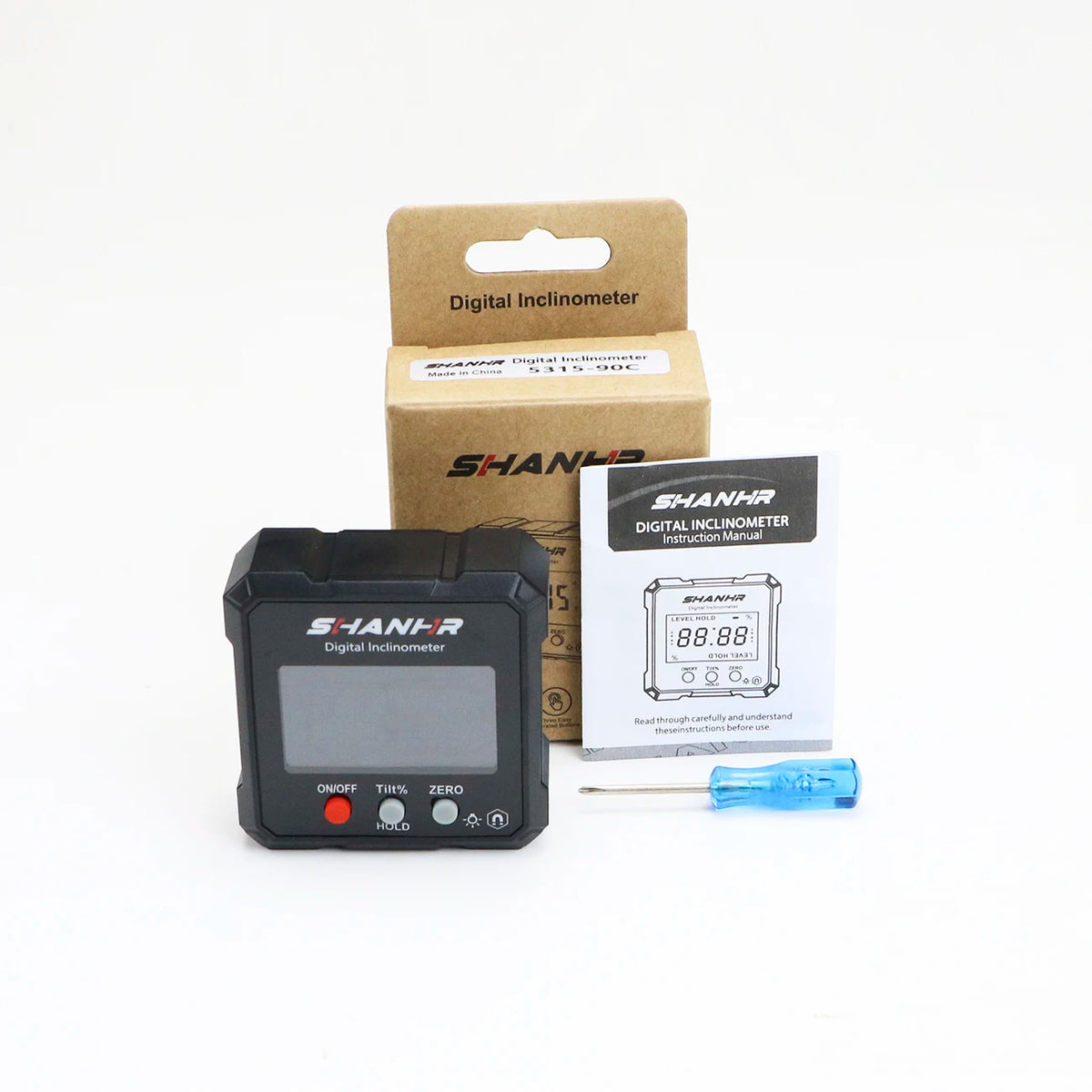

The package includes the digital inclinometer, a screwdriver, an instruction sheet and a storage box.
