SPECIFICATIONS

Accuracy: ±2℃or±2%

Battery Included: Yes

Battery Type Detachable: 18650 Lithium-ion battery

Brand Name: TOOLTOP

Choice: yes

Color palette: 5 Kinds

Emissivity: 0.1 to 0.99 adjustable

Gain mode: Auto Gain

High-concerned chemical: none

Image capture frequency: 25Hz

Macro Lens: Optional

Material: Plastic

Maximum temperature: 550 ℃

Measurement resolution: 0.1℃/0.1℉

Minimum temperature: -20 ℃

Origin: Mainland China

Photos Taking and viewing: support

Screen: 2.8 Inches

Semi-finishedproduct: No

Storage capacity: 7.5MB

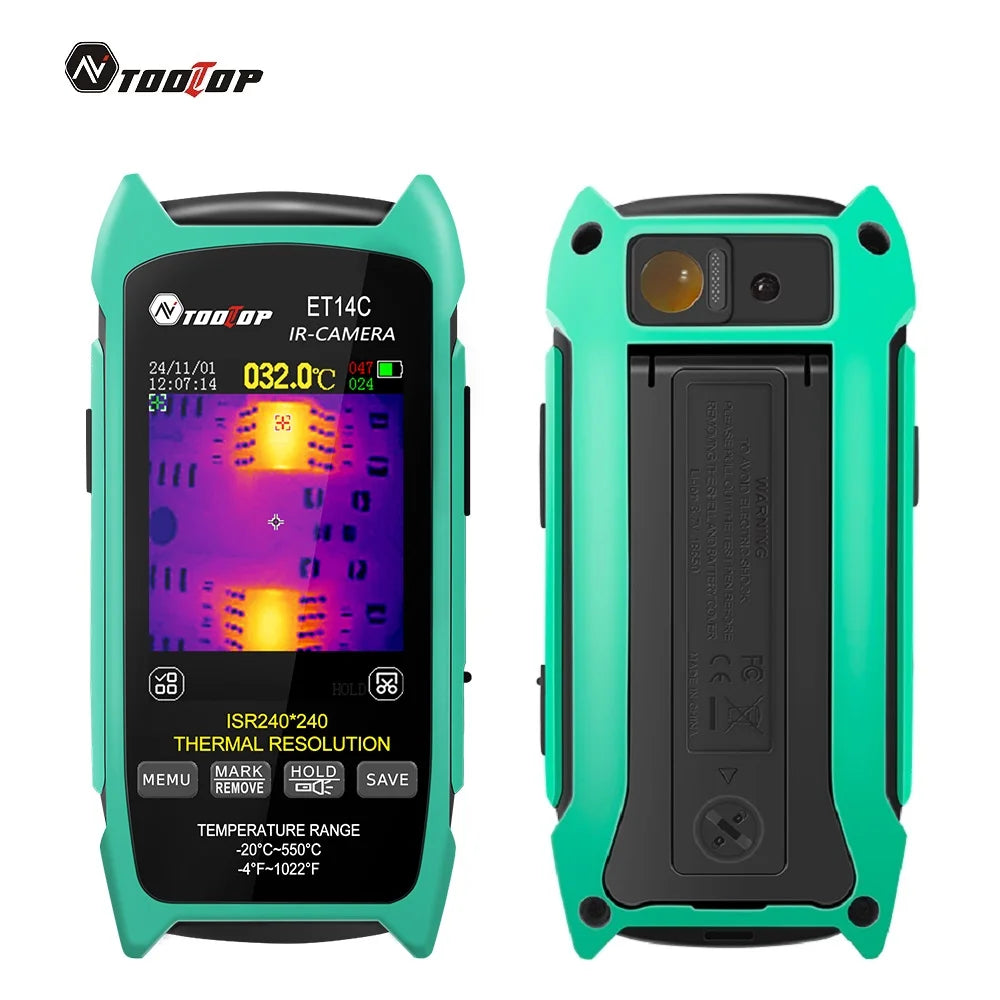

TOOLTOP Model: ET14C

Temperature range: -20℃ ~ +550℃

Thermal imaging pixels: ISR 240x240

Thermal pixels: 240*240

lmage storage format: BMP

Note:

1.In order to correct non-uniformity, a mechanical control calibration plate is installed in front of the thermal imaging detector, which will be calibrated every 10 seconds to ensure more accurate measurements. This is a thermal imaging detector undergoing calibration work, which usually experiences a lag of about 1-2seconds. This is a normal phenomenon, so please don't worry.

2.PC SoftwareDownload: http://doctuchuang.eirbio.cn/FR02E_EN/IR-DMM.zip

3.For PCB circuit board inspection, it is recommended to buy the version which containing a macro lens

Features:

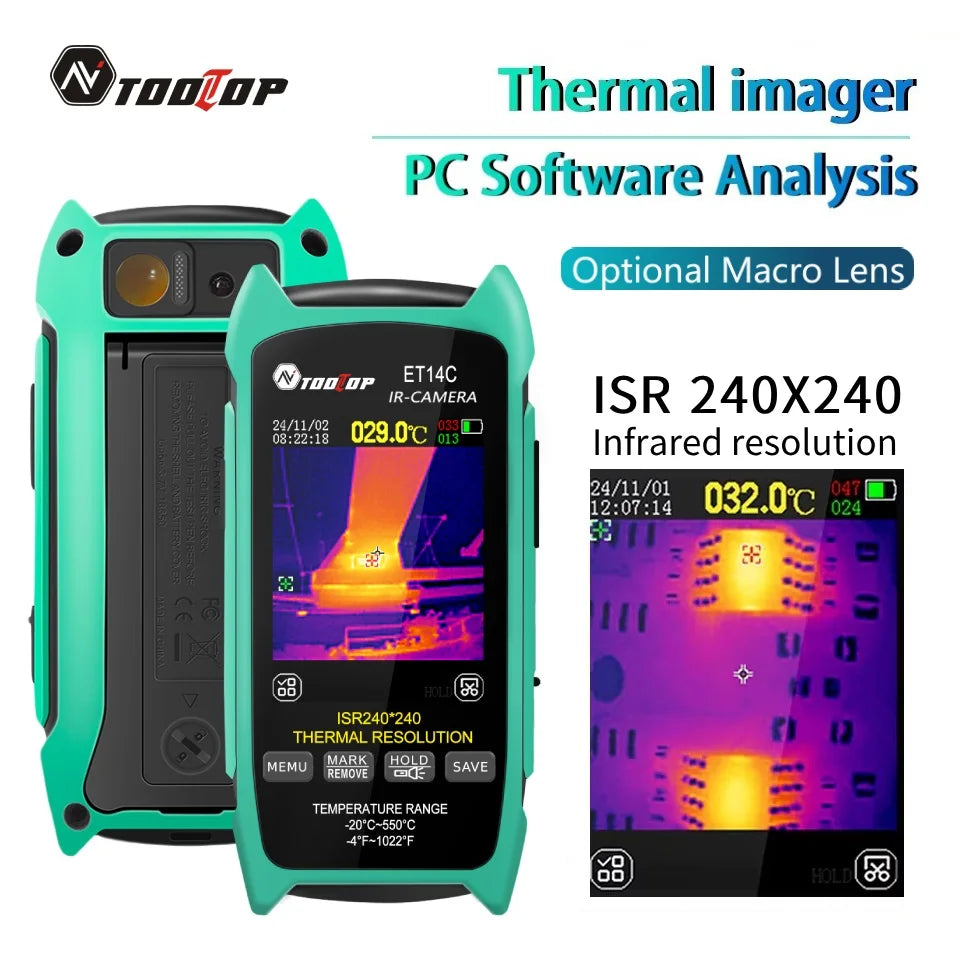

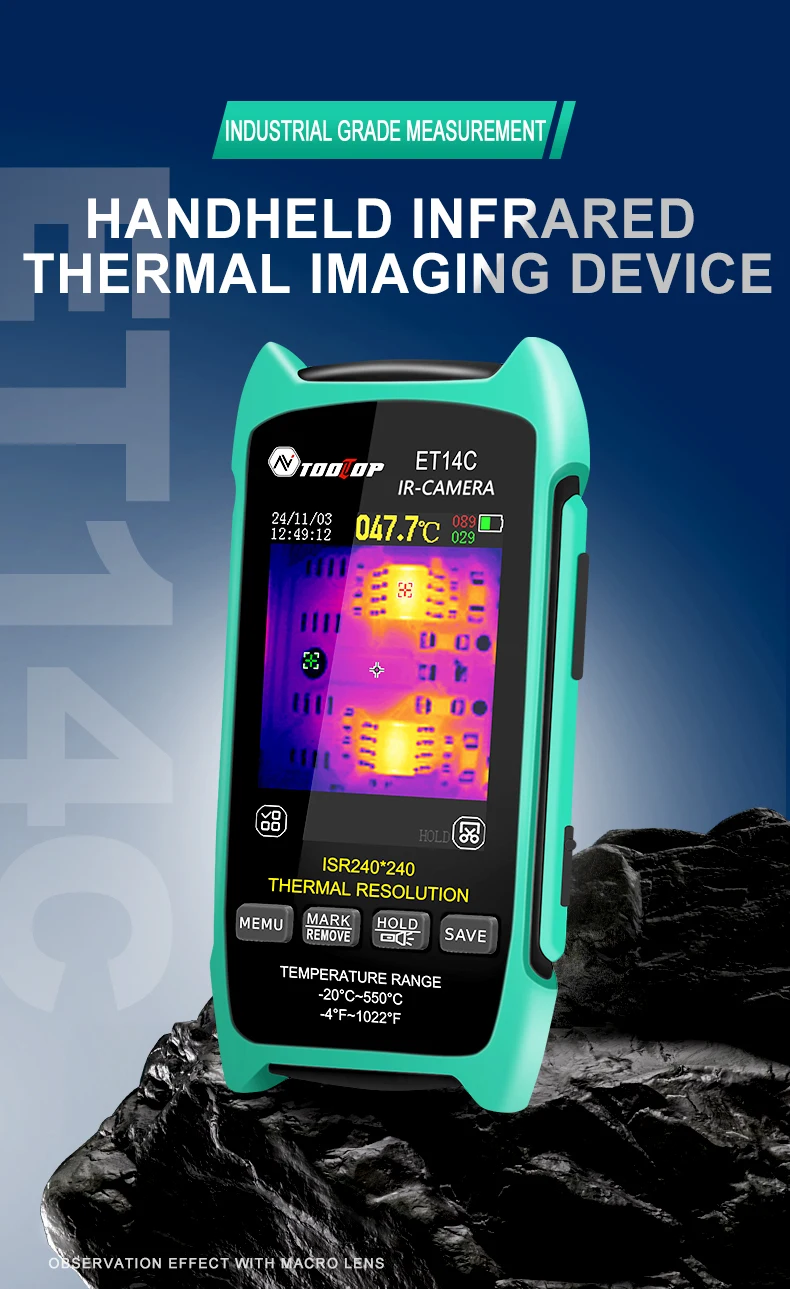

ISR240x240 Thermal Camera

Upgraded imaging pixels of 240x240 and 25hz image capture frequency, providing clearer and more detailed thermal images. With optional macro lens.

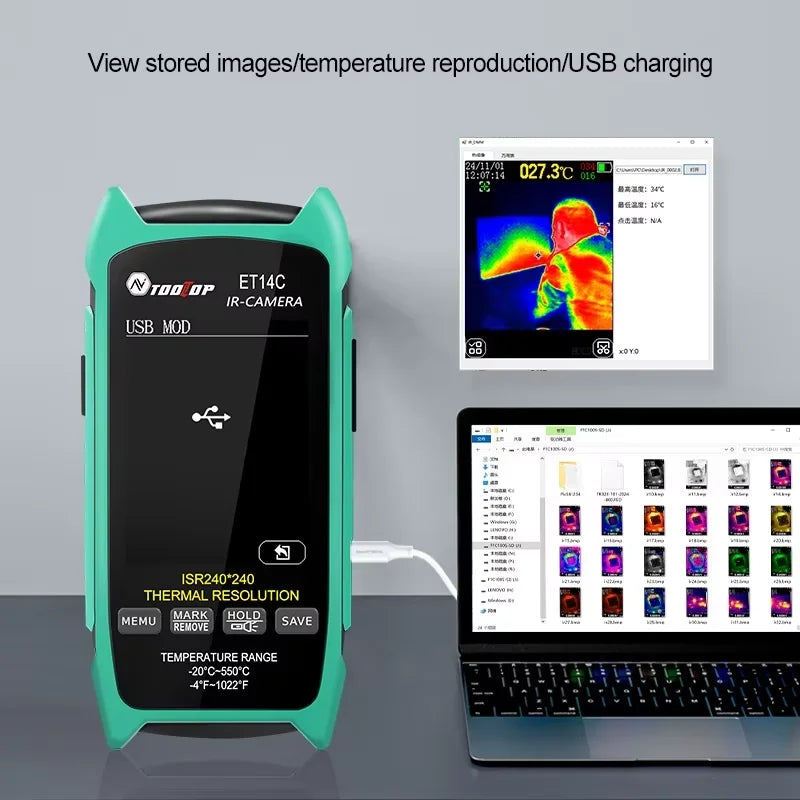

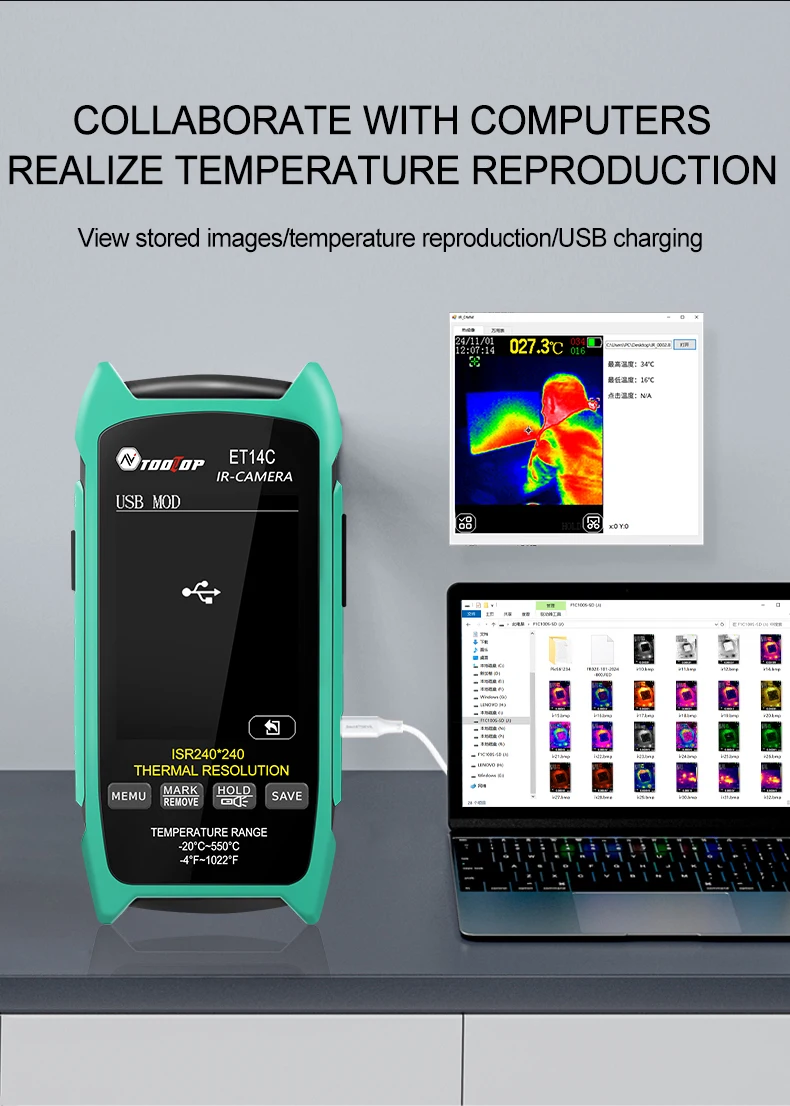

PC Software Analysis

allows for the transfer and analysis of thermal images under USB Mode

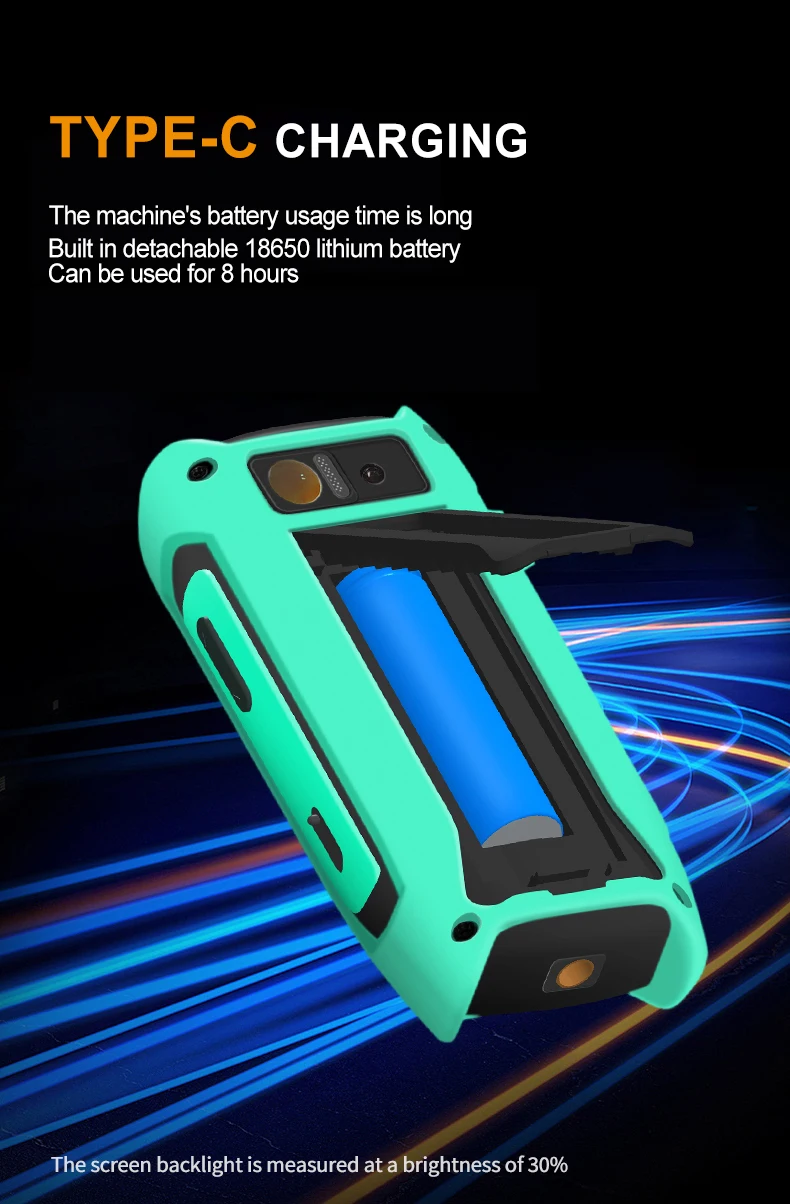

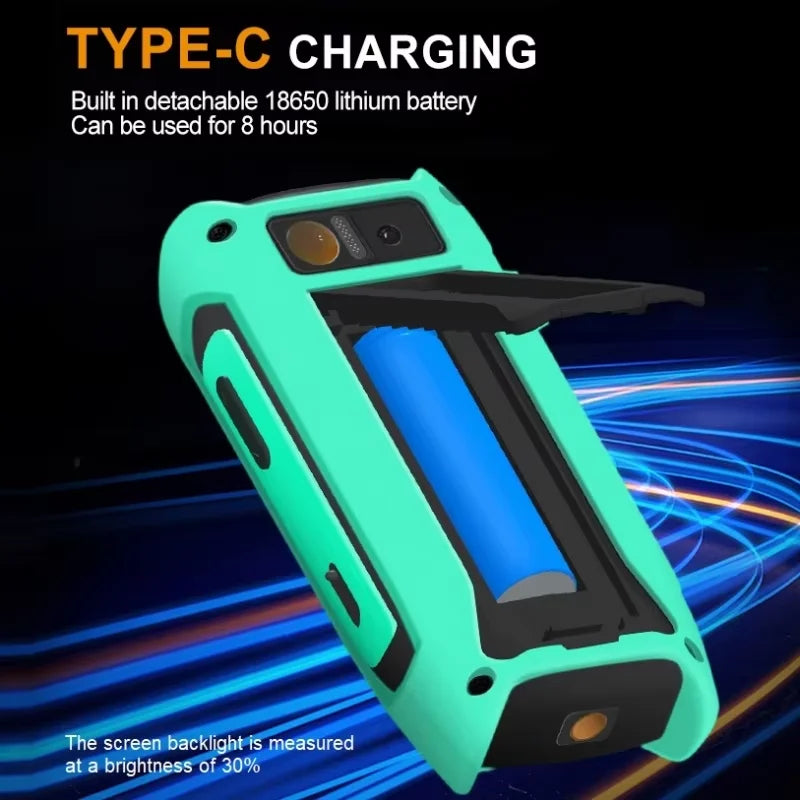

Detachable Lithium Battery

Up to 8 hours of continuous use. The universal 18650 battery design allows for easy replacement, eliminating concerns about battery aging.

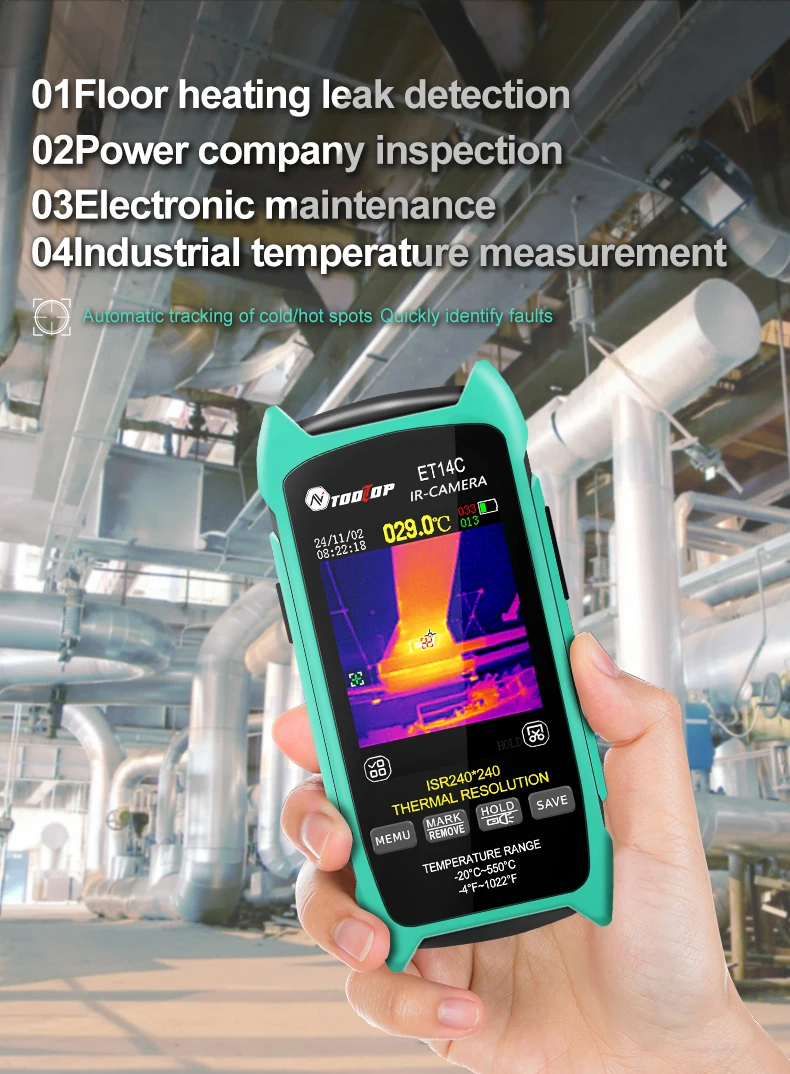

Widely Applications

for Home appliance overhaul, circuit board inspection, power supply and electronic equipment maintenance. It's an ideal choice for electronics and maintenance technicians

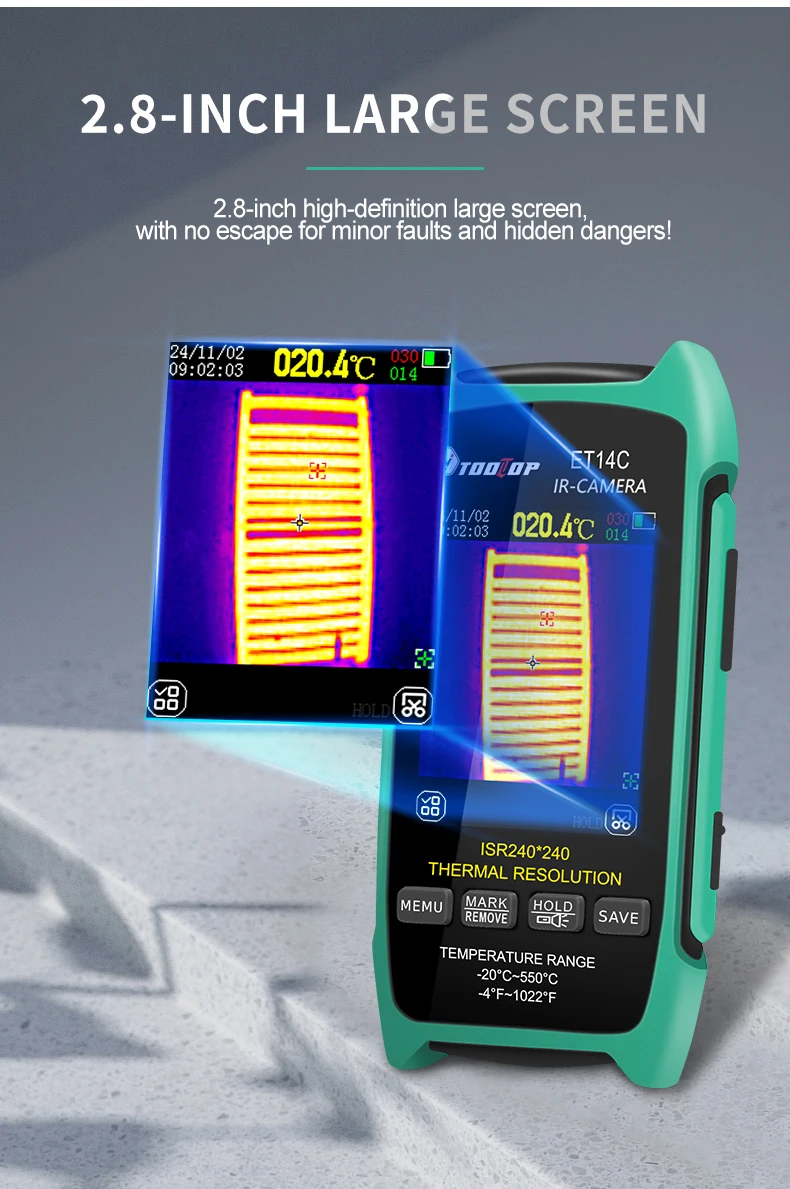

Compact and Portable

with a 2.8-inch large screen and innovative stand design, this device offers convenience and versatility for all your viewing needs.

Specifications:

Thermal imaging parameters

Image capture frequency: 25Hz

Thermal imaging pixels: ISR 240x240

Field of View : 50.0°(H) × 50°(V) /72.1°(D)

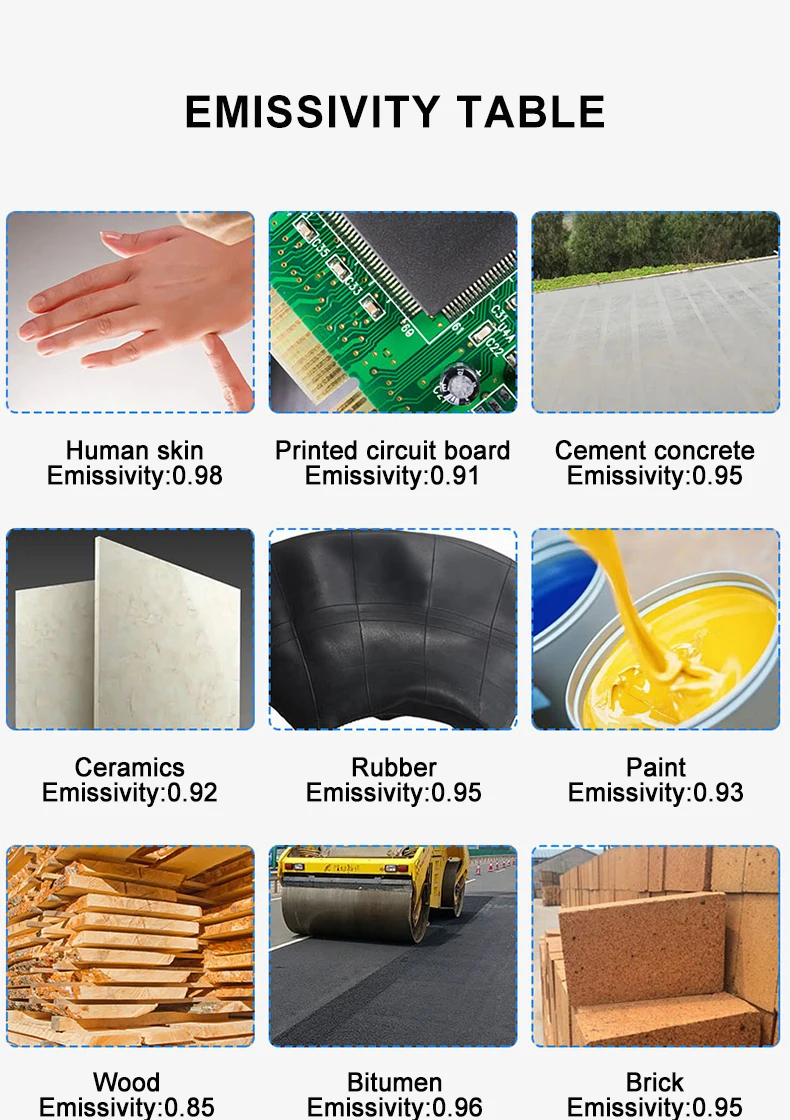

Emissivity: 0.1 – 0.99 adjustable,(0.95 by default)

Temperature range: -20℃ ~ +550℃

Gain mode: Auto Gain

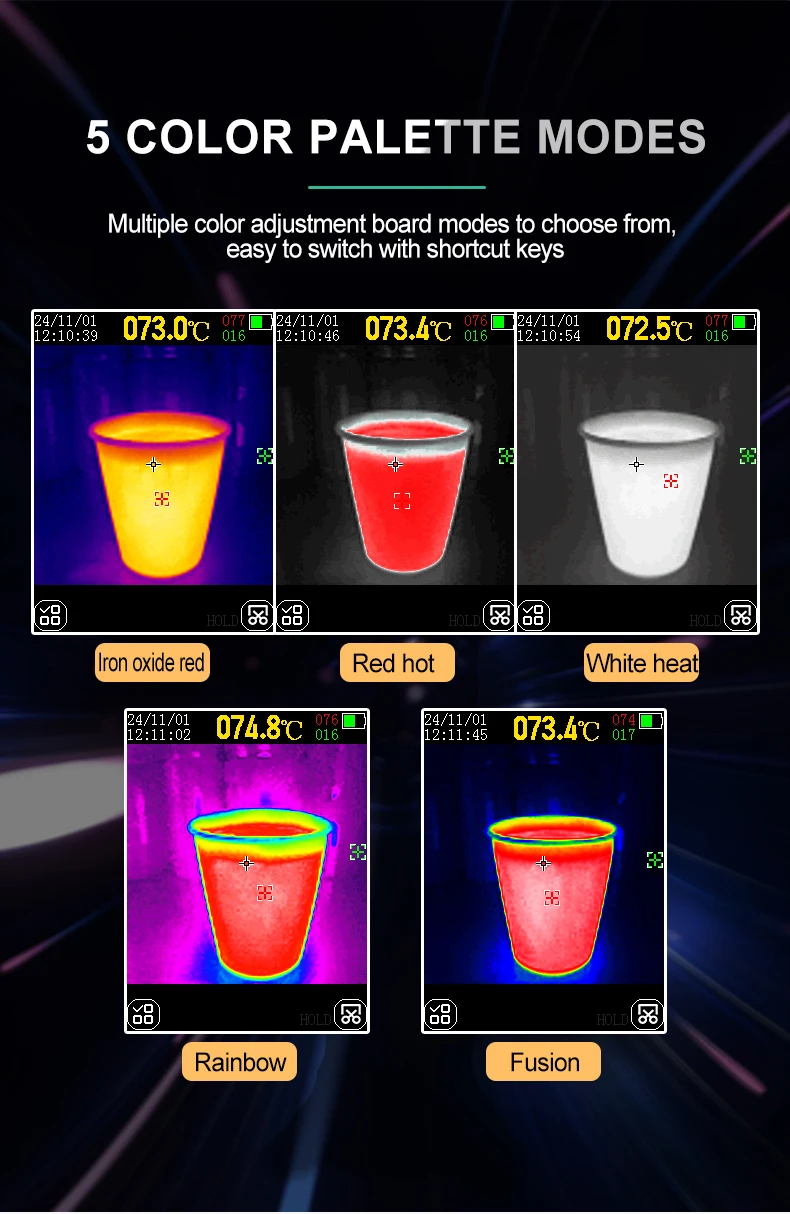

Color palette: Iron Red, Rainbow, Fusion, White Heat, Red Heat

Accuracy: ±2℃or±2%

Measurement resolution: 0.1℃/0.1℉

Photos Taking and viewing: support

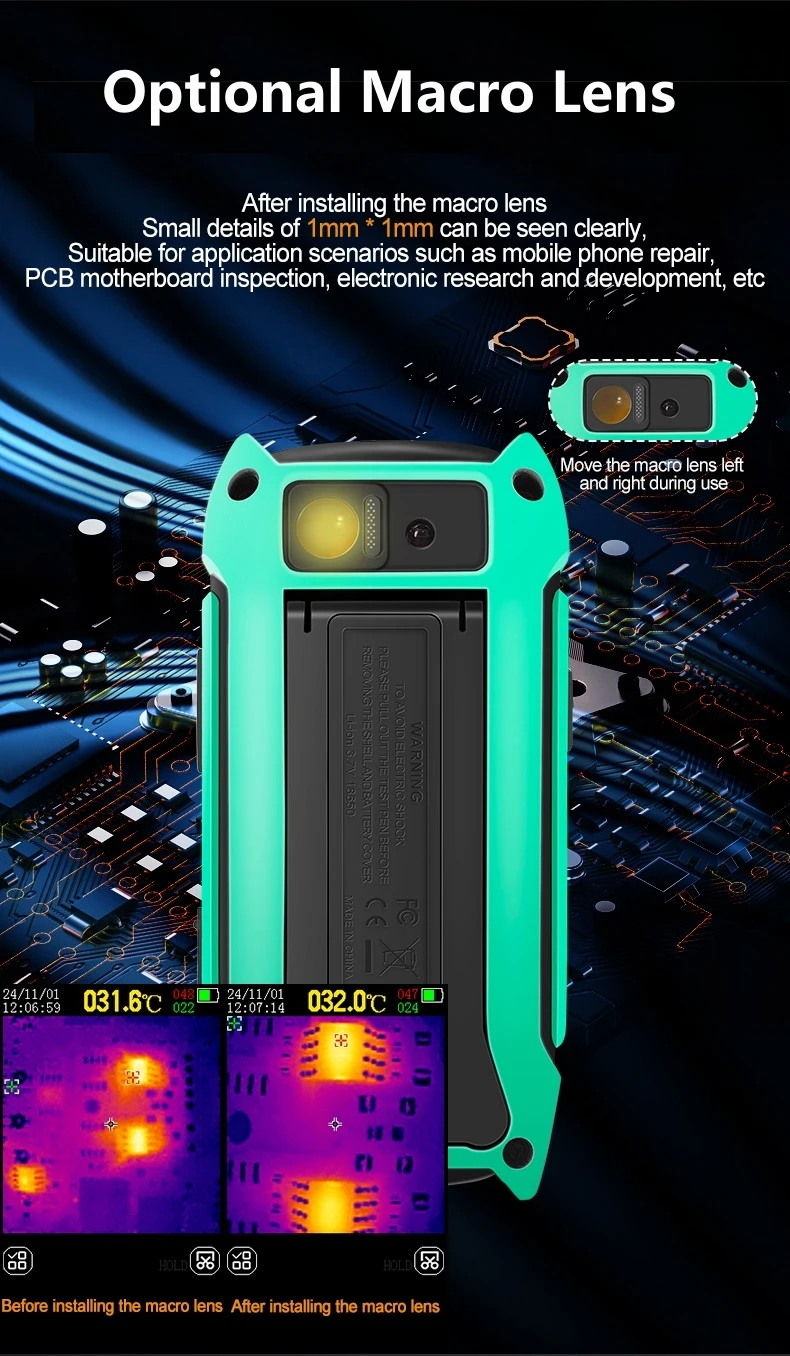

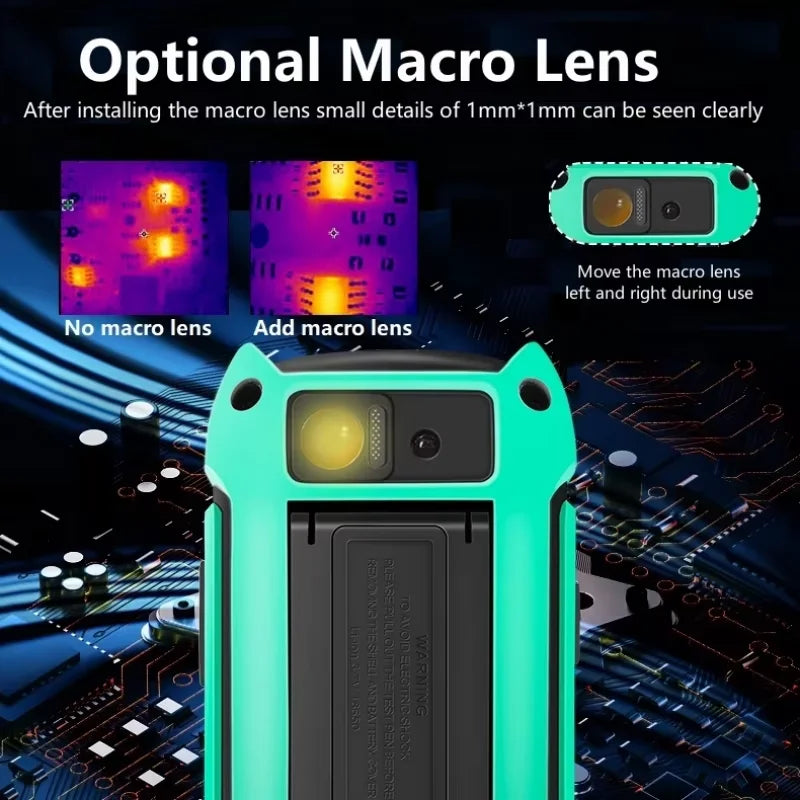

Macro Lens: Optional, no need to install, move the macro lens left and right during use.

Macro lens working distance: about 2.5cm, (please use normal thermal imaging when the distance exceeds this, otherwise the image will become blurred)

Other parameters of the equipment

Display type: 2.8-inch, 240 * 320 resolution

USB interface: Type-C USB

Storage capacity: 7.5MB

lmage storage format: BMP

Battery Type: Detachable 18650 Lithium-ion battery

Languages: Chinese,English,German

Storage temperature: -20～60℃（-4～140℉）

Operating temperature: 0～50℃（32～122℉）

Operating Humidity: ＜85%RH （ non-condensing ）

Size: 134 mm * 64mm * 28 mm

Weight: Host weight: 180g (including battery)

packaging weight: 380g

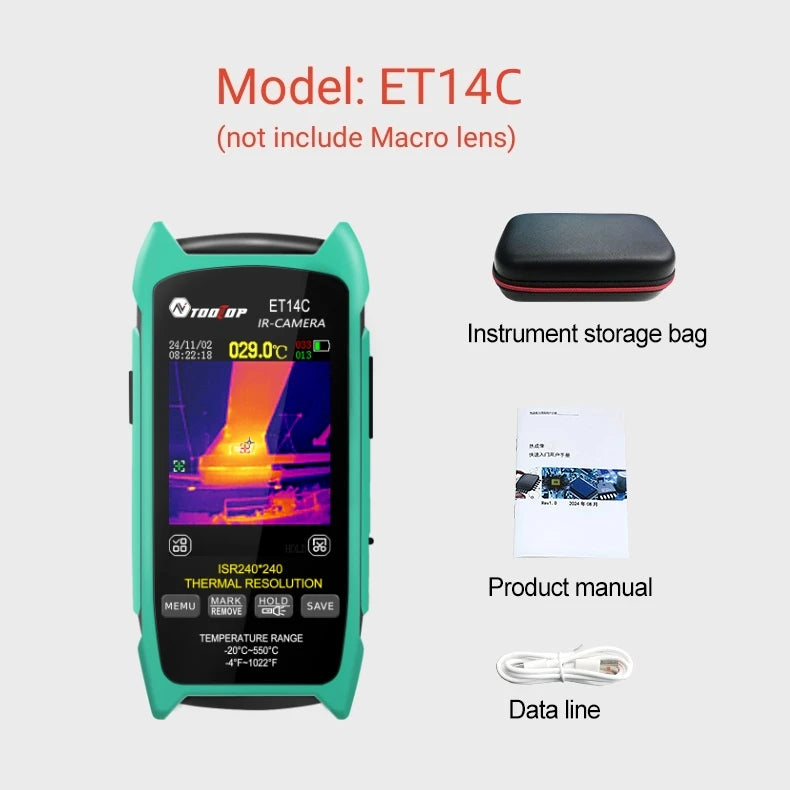

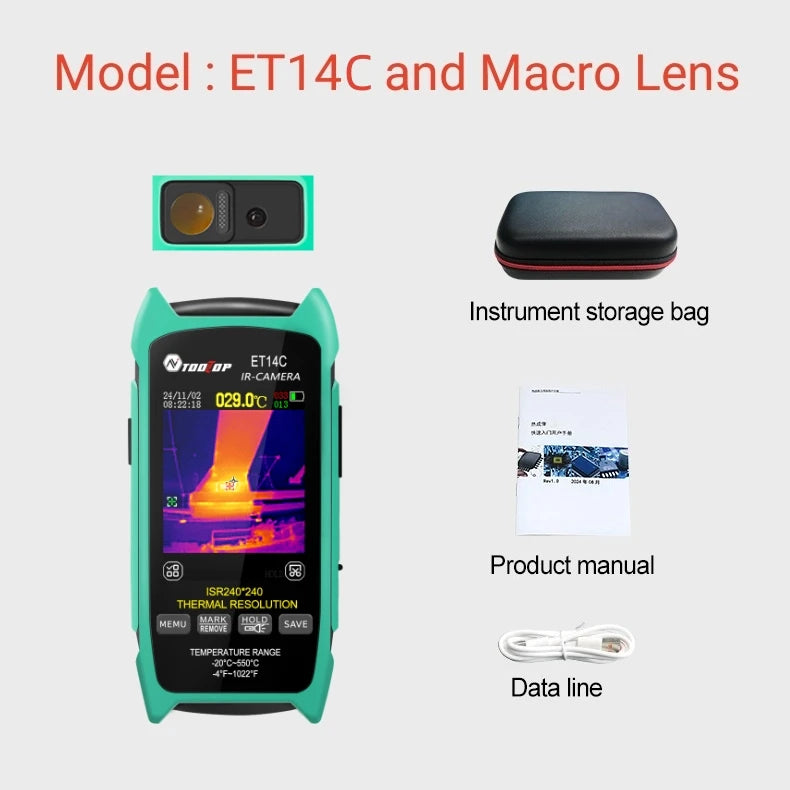

Package List:

1 x Thermal Camera

1 x USB Cable

1 x English Manual

1 x Storage Bag

1 x Macro Lens (for optional)
